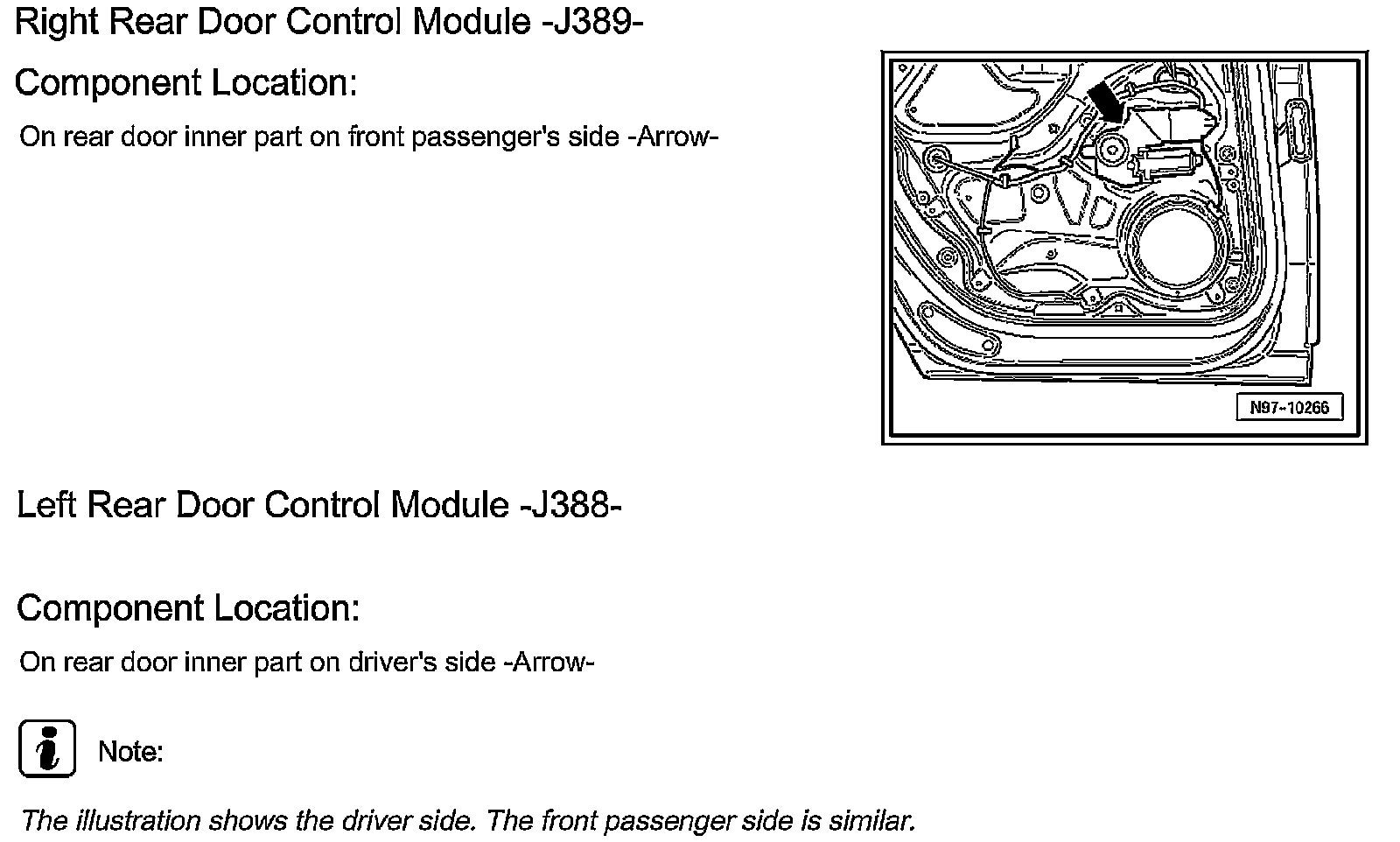

Right Rear Door Control Module J389, Left Rear Door Control Module J388
Right Rear Door Control Module J389, Left Rear Door Control Module J388:

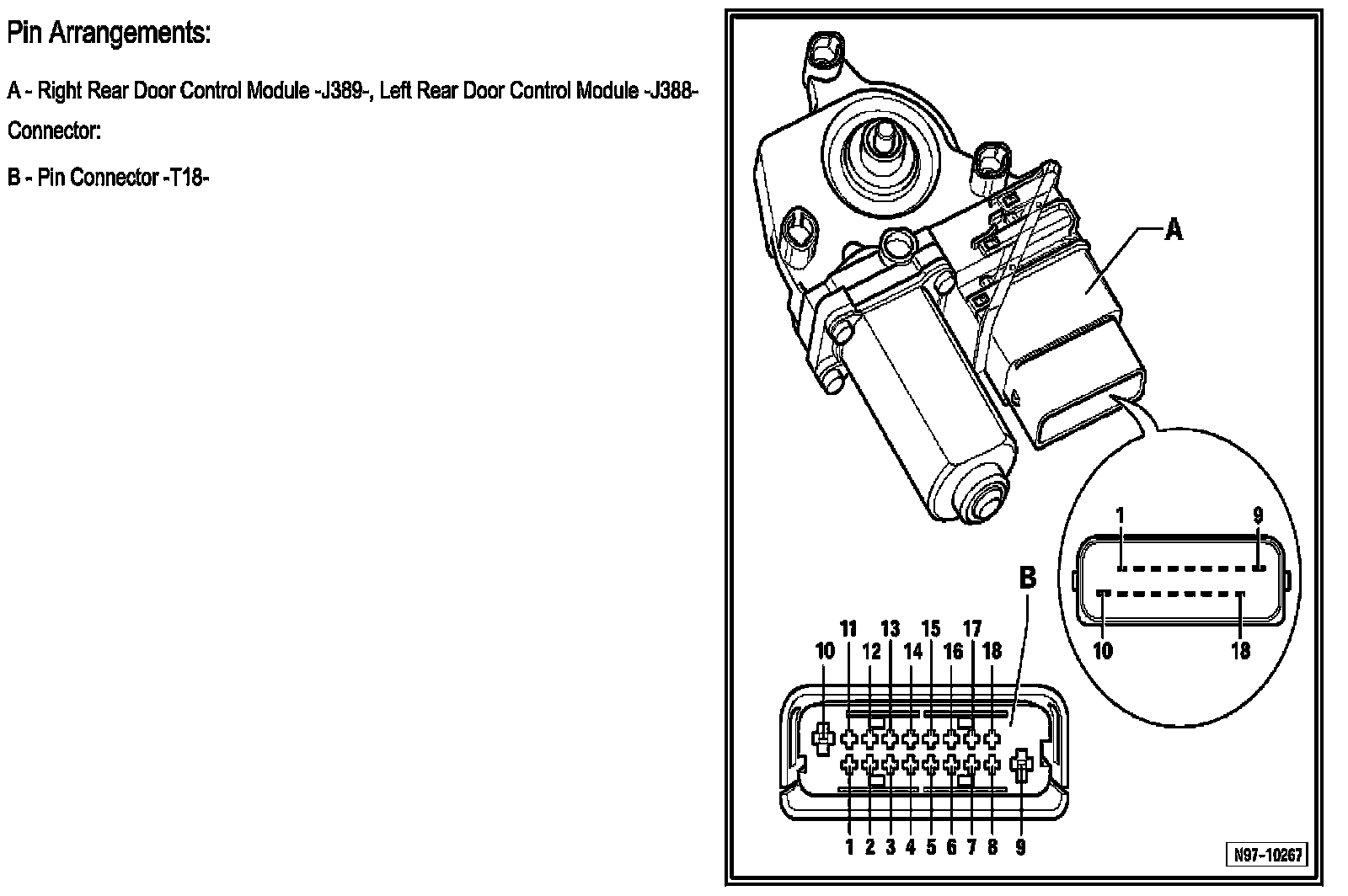

Pin Arrangements:
