Adaptive Cruise Control, Component Overview

Adaptive Cruise Control, Component Overview

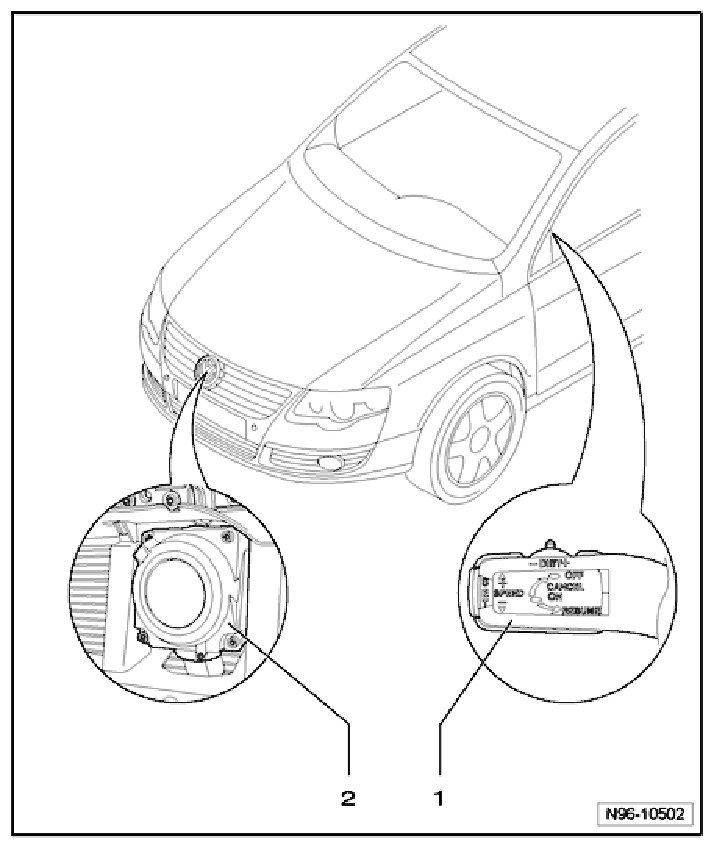

1 - Adaptive Cruise Control Button E357

The Adaptive Cruise Control Button E357 is integrated with the cruise control switch on the steering column switch stalk.

Removing and installing CCS plus-switch on steering column.

2 - Distance Regulation Control Module J428

Distance Regulation Control Module J428 must not be disassembled further and contains the following components:
- Distance Regulation Control Module J428
- Adaptive Cruise Control Sensor G550
- Distance Regulation Sensor Heater Z47

Distance Regulation Control Module J428, removing and installing.
