Right HID Headlamp Range Control Module

Right HID Headlamp Range Control Module

CAUTION:
- HIGH VOLTAGE.
- Always disconnect negative (-) battery terminal prior to servicing any parts of the HID lamp system marked with the yellow "HIGH VOLTAGE." symbol.
- After disconnecting battery, briefly turn headlamps on and off in order discharge any residual voltage.

The (slave) control module is located on the right/front inner long member.

Removing
- Remove front bumper cover.

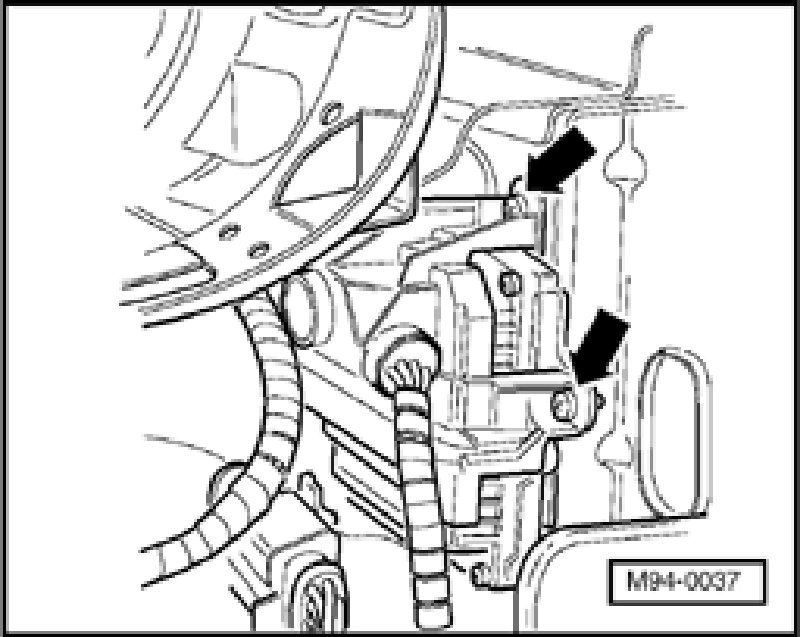

- Remove screws - arrows - on module retainer.
- Remove retainer and module together.
- Disconnect electrical connection from module.

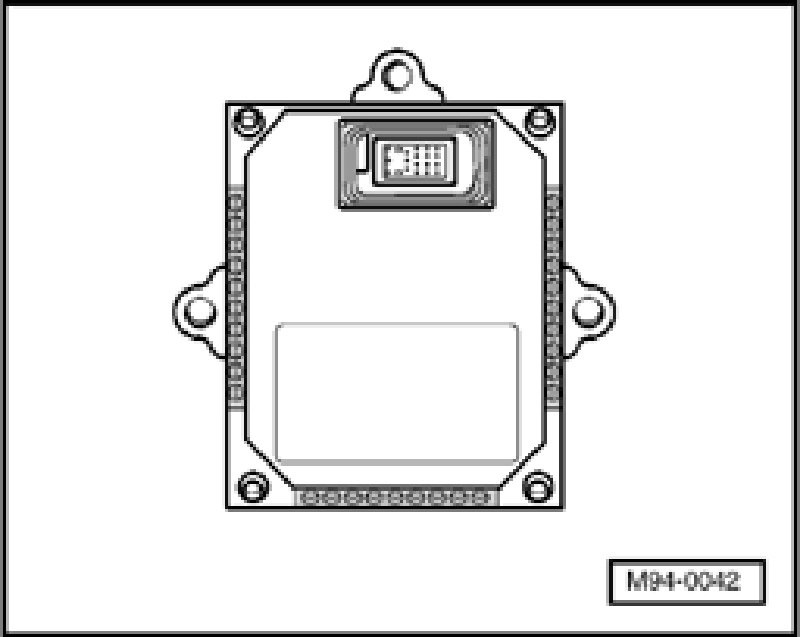

- Remove screws and separate module from retainer.

Installing
Install in reverse order of removal.
