Power and Ground Distribution
>>
Power Distribution Relay
>>
Locations
>>

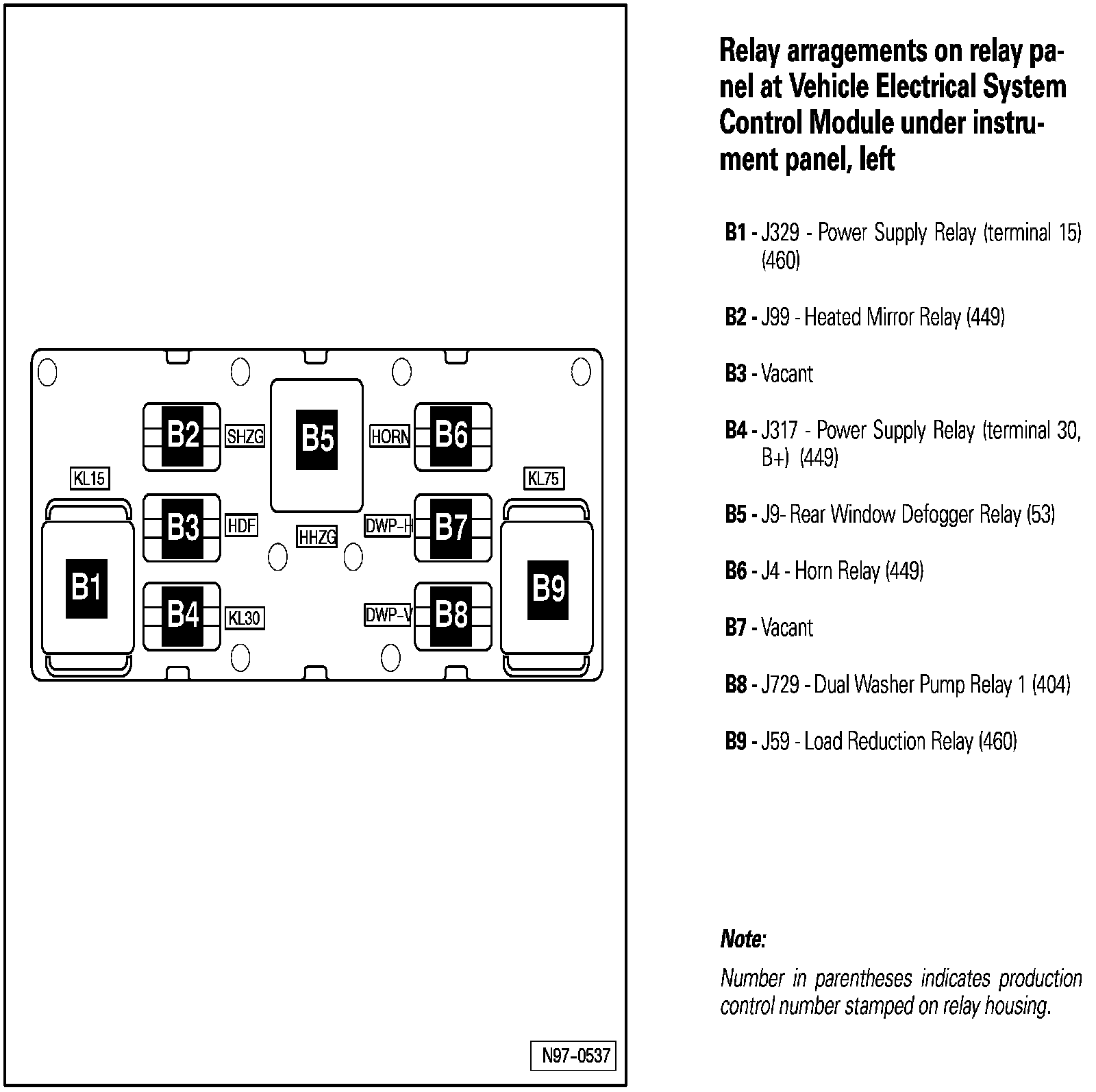

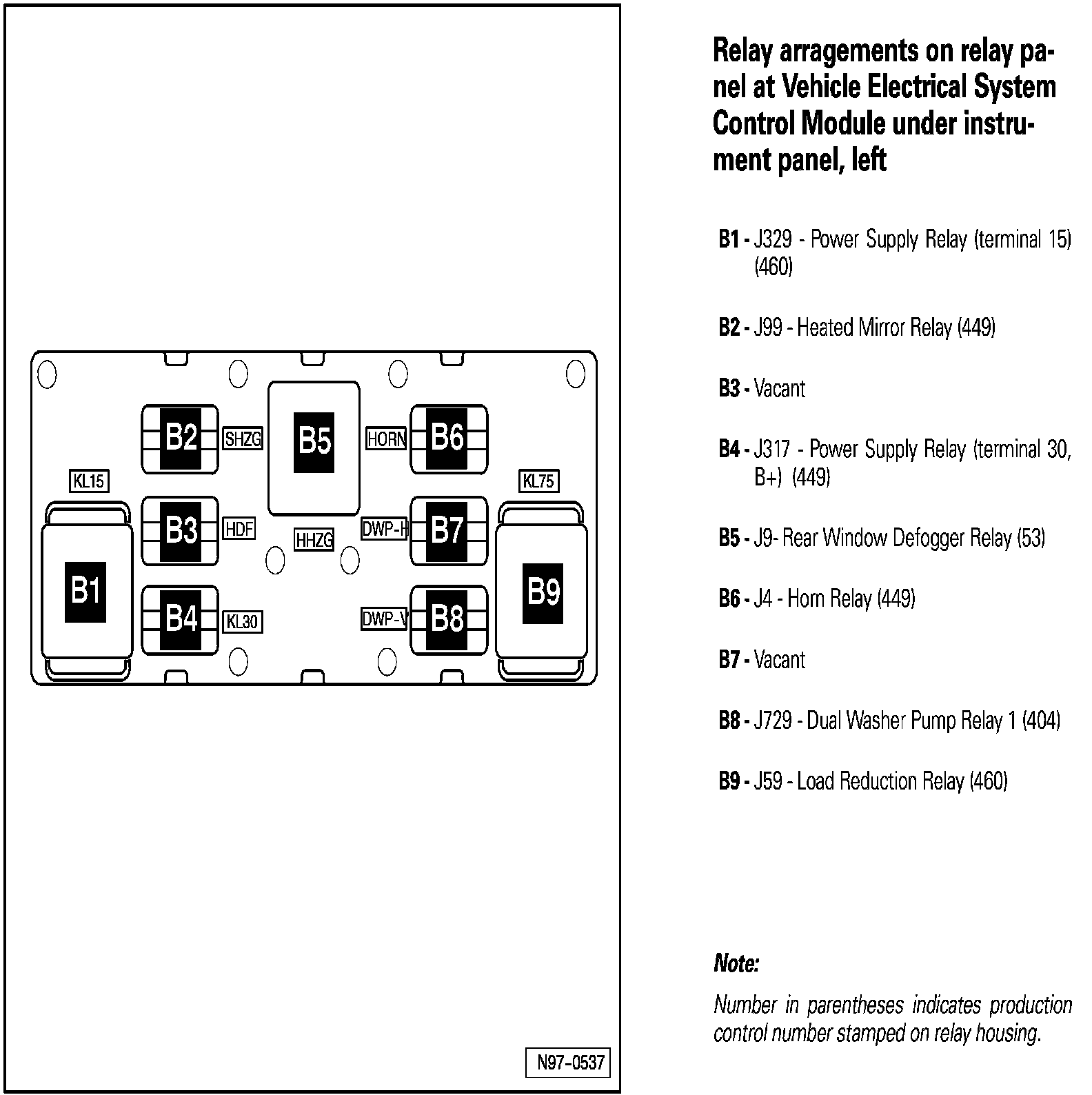

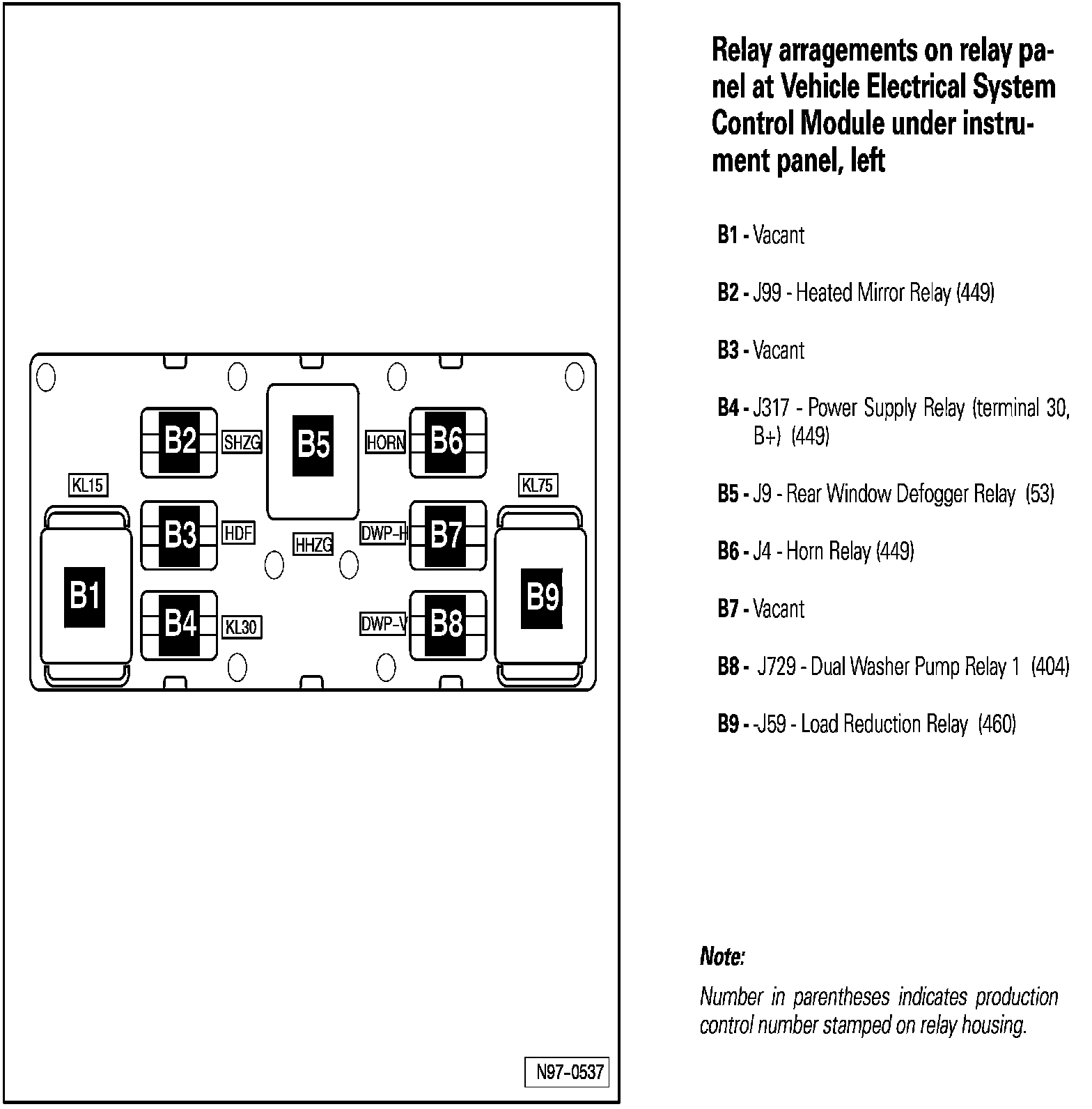

Relay Arrangements on Relay Panel At Vehicle Electrical System Control Module Under Instrument Panel, Left
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Relay Arrangements on Relay Panel At Vehicle Electrical System Control Module Under Instrument Panel, Left
