Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

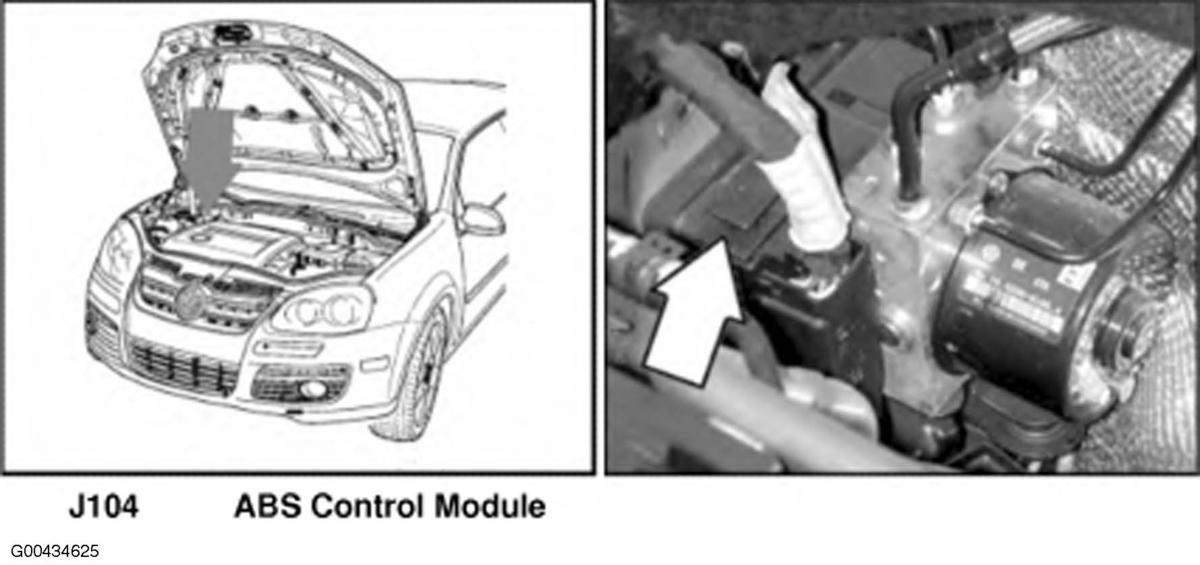

| ABS Control Module | Right rear corner of engine compartment. See Figure. |

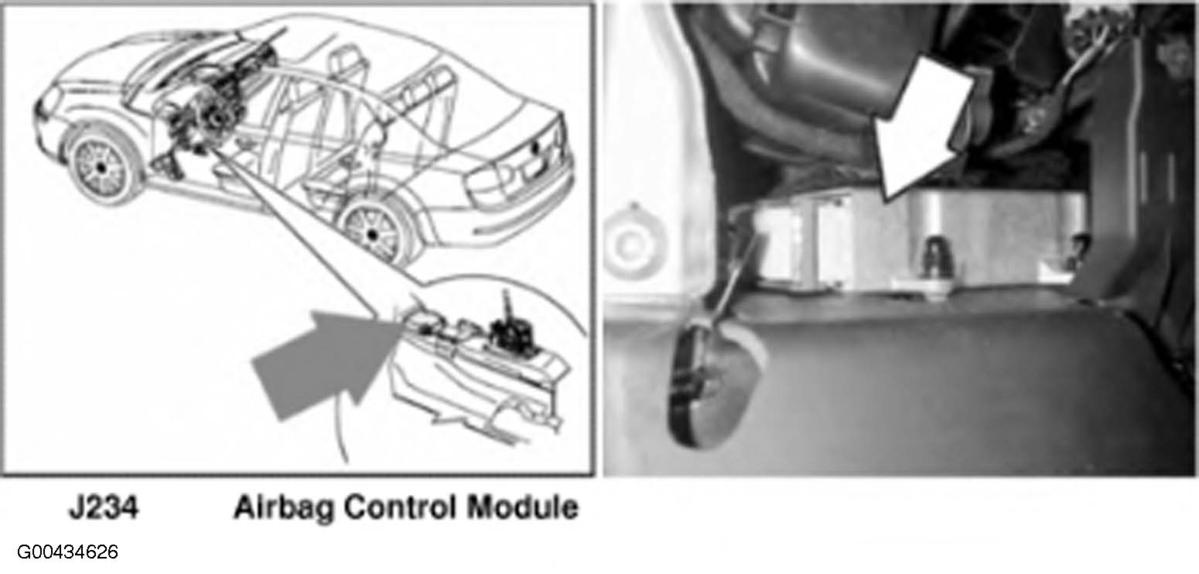

| Air Bag Control Module | Beneath center of dash, on central tunnel. See Figure. |
| Comfort System Central Control Module | Behind right side of dash. See Figure. |

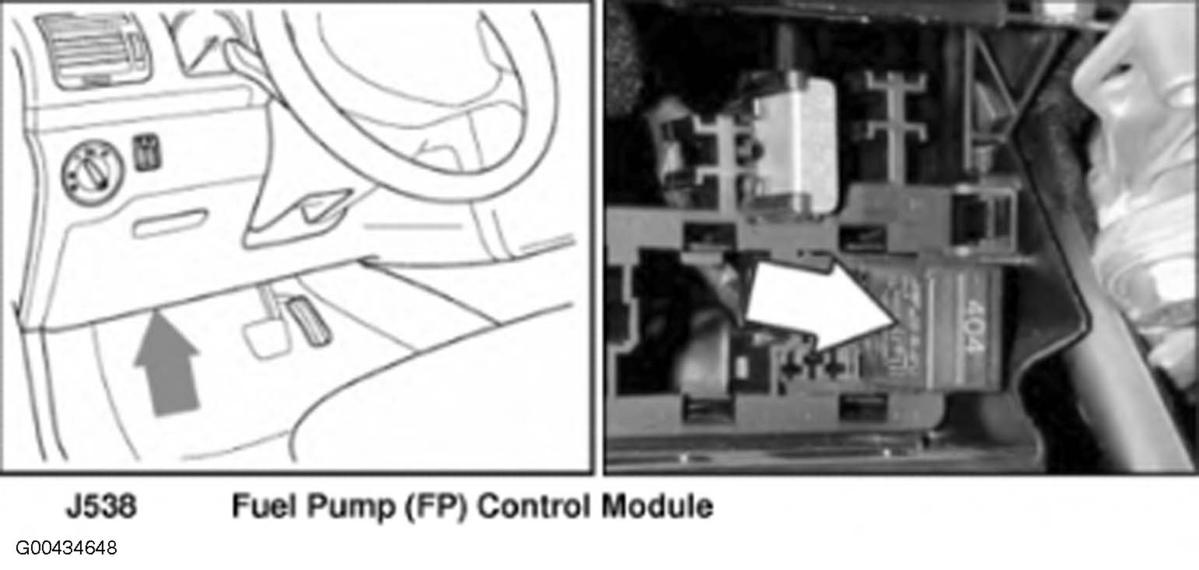

| Fuel Pump (FP) Control Module | Above & right of relay panel. See Figure. |

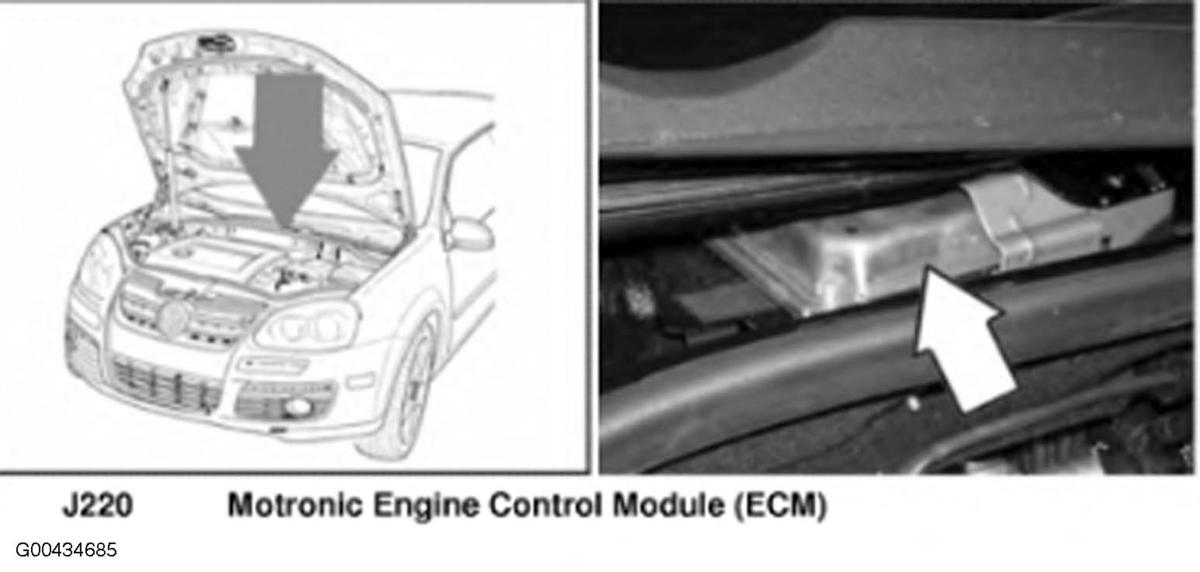

| Motronic Engine Control Module (ECM) | At base of windshield, in center of plenum. See Figure. |

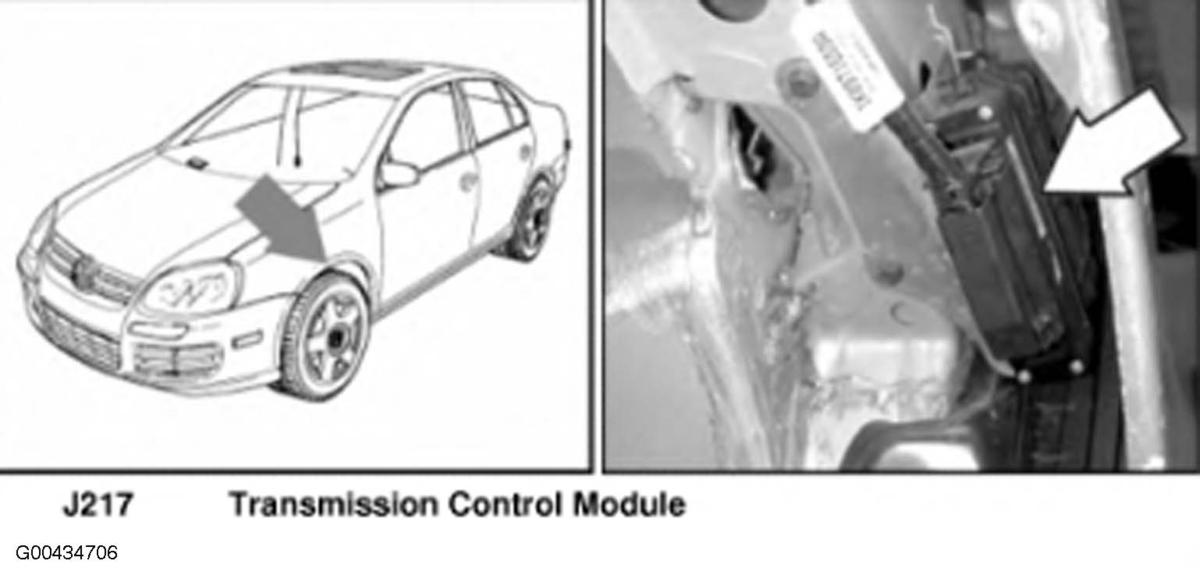

| Transmission Control Module | Behind left front wheelwell, near "A" pillar. See Figure. |

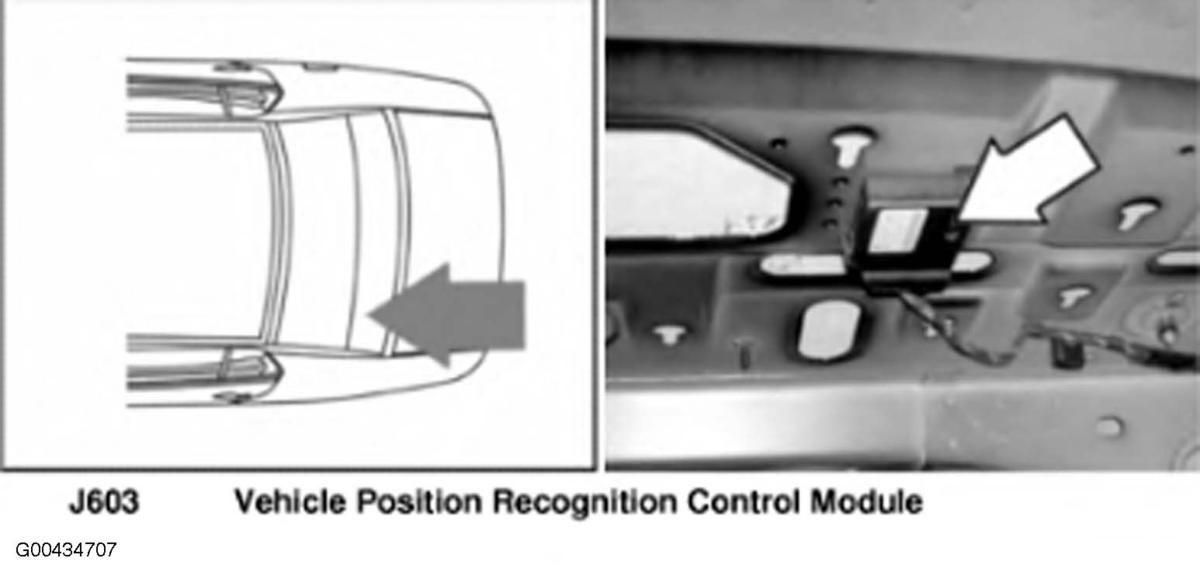

| Vehicle Position Recognition Control Module | Under left side of rear shelf support. See Figure. |
