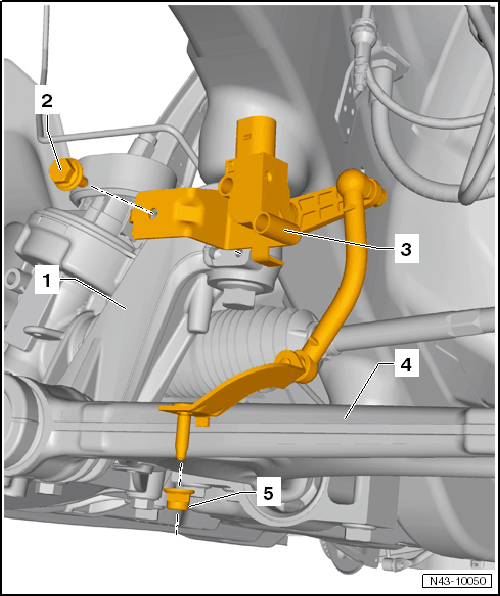

Front Left Level Control System Sensor Assembly Overview
NOTE:
A replacement front left level control system sensor -G78/- comes complete with the coupling rod and the upper and lower retaining plate.
Replace with subframe installed.
- Subframe
- Bolt
- M6 x 16
- 9 Nm
- Left Front Level Control System Sensor -G78- and Right Front Level Control Sensor -G289-
- Complete with components
- Lever -arrow- must point toward vehicle exterior
- Removing and installing, refer to FRONT LEFT LEVEL CONTROL SYSTEM SENSOR
- After replacing, perform basic setting of the headlamps
Headlamps basic setting, refer to HEADLAMPS . Vehicle Diagnosis, Testing, and Information System VAS 5051 in "Guided Fault Finding" function
- Control Arm
- Nut
- Always replace after removal
- 9 Nm
- Self-locking
