Power Steering Control Module Connector End Views (J500, T5g, T5h, T2a)

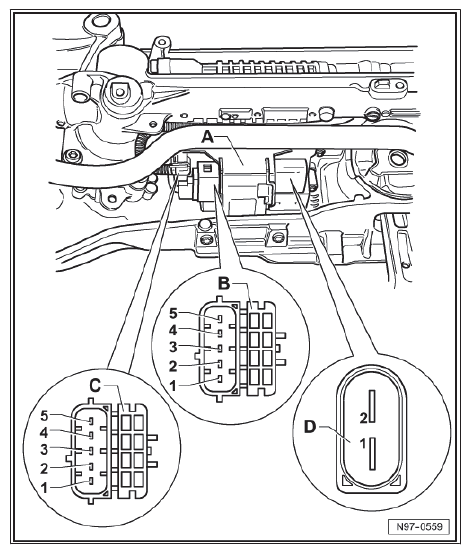

Fig 1: Power Steering Control Module Connector End Views (J500, T5g, T5h, T2a)
A
Power Steering Control Module -J500-
B
5-pin connector -T5g-
C
5-pin connector -T5h-
D
Double connector -T2a-
