Left Rear Door Control Module Connector End Views (J388, T18c)

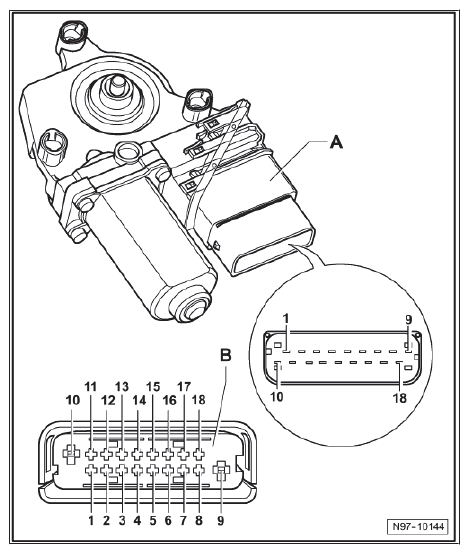

Fig 1: Left Rear Door Control Module Connector End Views (J388, T18c)
A
Left Rear Door Control Module -J388-
B
18-pin connector -T18c-
