Data Bus On Board Diagnostic Interface Connector End Views (J533, T20)

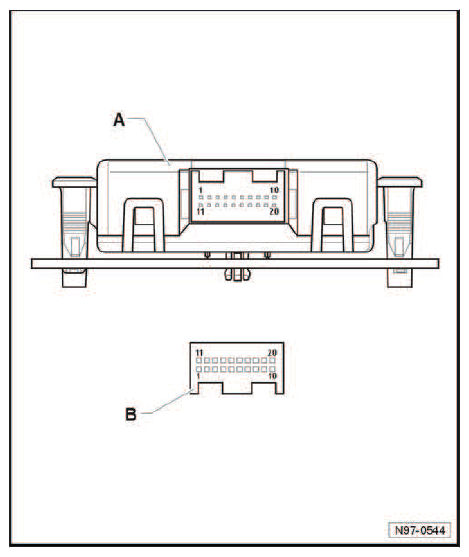

Fig 1: Data Bus On Board Diagnostic Interface Connector End Views (J533, T20)
A
Data Bus On Board Diagnostic Interface -J533- connector:
B
20-pin connector -T20-
