Update Programming For ECM Part Number Beginning With "07K" (GROUP 01, NO. 07-57)

Publication date: 2007-08-24
Reference number: GROUP 01, NO. 07-57
Supersedes refnos: 2011742, 2012640, 2013222, 2013355, 2015972, GROUP 01, NO. 06-06, GROUP 01, NO. 06-10, GROUP 01, NO. 06-21, GROUP 01, NO. 06-22, GROUP 01, NO. 07-48

UPDATE PROGRAMMING FOR ECM PART NUMBER BEGINNING WITH "07K"

UPDATE PROGRAMMING FOR ECM PART NUMBER BEGINNING WITH "07K"

TECHNICAL SERVICE BULLETIN

Reference Number(s): GROUP 01, NO. 07-57 (2015972), Date of Issue:  August 24, 2007
VOLKSWAGEN: New Beetle 2006-2007; New Beetle Convertible 2006-2007; Jetta (A5) 2006-2007; Rabbit 2007
GROUP: 01 - On-Board Diagnostic
Superceded Bulletin(s): 2013355, 2013222, 2011742, 2012640

SERVICE INFORMATION

APPLICABLE MODELS AND YEARS

Model(s) Year Eng. Code Trans. Code VIN Range From VIN Range To
New Beetle 2006 2.5L (BPS, BPR) All 1C_6M000001 1C_6M423670
New Beetle 2007 2.5L (BPS, BPR) All 1C_7M000001 1C_7M501786
New Beetle Convertible 2006 2.5L (BPS, BPR) All 1Y_6M000001 1Y_6M332063
New Beetle Convertible 2007 2.5L (BPS, BPR All 1Y_7M000001 1Y_7M402617
Jetta (A5) 2006 2.5L (BGP, BGQ, BTK) All 1K_6M000001 1K_6M841248
Jetta (A5) 2007 2.5L (BGP, BGQ, BTK) All 1K_7M000001 1K_7M028776
Rabbit 2007 2.5L (BGP, BGQ, BTK) All All All

CONDITION

01 07 57  August 24, 2007 2015972  Supersedes;

NOTE: Purge CD's associated with the above listed technical bulletins.

Update Programming for ECM part number beginning with "07K"

Updated ECM software resolving various powertrain concerns.

TECHNICAL BACKGROUND

CONCERNS ADDRESSED BY THIS SOFTWARE UPDATE

P0011 Camshaft Position (Bank 1) Timing Over Advanced or System Performance
P000A Camshaft Position (Bank 1) Adjustment Too Slow
Exhaust System Noise After Starting Cold
NOTE: Prior to performing Update Programming, please inform the customer that this software update addresses all of the concerns listed above. Once the Control Module programming is complete, the module cannot be returned to its original state. Please inform the customer that their concern addressed by this technical bulletin will not be resolved without this software update. Do not perform Update Programming if the customer does not want the Update Programming installed in their vehicle.

Updated ECM software that addresses:

ENGINE CONTROL MODULES AFFECTED

Model Year Vehicle ECM Part No. Index
2007 Jetta/Rabbit 07K906032 Q, R, S, T
2007 New Beetle, New Beetle Convertible 07K906032 AA, AB, AC, AD
2006 Jetta 07K906032 AN, AP, L, M, N, P, AR, AQ
2006 New Beetle, New Beetle Convertible 07K906032 No Index, A, B, C, AS, AT, BA, BB

PRODUCTION SOLUTION

Update software addressed in production as of:

PRODUCTION INFORMATION

Jetta 3VWSF71K76M841249
3VWPN11K07M028777
New Beetle 3VWXW21C66M423671
3VWXW21C67M501787
New Beetle Convertible 3VWRG31Y26M332064
3VWRG31Y67M402618

SERVICE

PROCEDURE

Tip:

Update programming procedure has been revised for vehicles equipped with the higher speed diagnostic CAN-bus.

NOTE: The programming for this procedure is designed to work with the diagnostic CAN-BUS. The New Beetle and New Beetle Convertible is an older platform which does not support the use of CAN-BUS, instead, the New Beetle and New Beetle Convertible relies on the K-line for communication. BEFORE attempting to flash these vehicles, remove Pin 6 from the Data Link Connector (T-16) using special tool VAS 1978A. After the programming procedure has completed, re-install Pin 6 into the Data Link Connector.
Engine Control Module Update - Programming (Flashing)

Tip:

Update programming procedure has been revised for vehicles equipped with the higher speed diagnostic CAN-bus.

When performing the update programming procedure, ALL DTCs for all systems are erased. DTCs linked to Guided Fault Finding function tests will be lost. Therefore, always address stored DTCs for Customer concerns unrelated to the update programming procedure first.

The following "Update - Programming" (flashing) process may overwrite any "TUNED" ECM programming. A "TUNED" ECM is described as any ECM altered so as to perform outside the normal parameters and specifications approved by Volkswagen of America, Inc.

If you encounter a vehicle with a "Tuned" ECM, prior to performing the "Update - Programming" (flashing) procedure:

  • Your Dealership should place the vehicle owner on notice in writing, that their ECM was found to have been tuned, and that any damage caused by the tuning of the ECM (including any adverse emissions consequences) will not be covered by Volkswagen of America, Inc. warranties.
  • For any repair requested by the owner under warranty or outside warranty that requires update programming, which will automatically wipe out the "Tuning" program, your Dealership should advise the owner of the above and get Owner's written consent (see attached Control Module Tuning form) to the update programming procedure.

Tool requirements:

  • VAS 5051 or VAS 5052 (with Base CD V.11.00 and the Brand CD V.11.79.01 or higher).
  • "Update - Programming" (flashing) CD W420607A5SWU.

    Tip:

    Additional copies of the "Update - Programming" CD (Literature Number W420607A5SWU) may be ordered from the Volkswagen Technical Literature Ordering Center at -> http://www.vw.resolve.com/, or by calling 1-800-544-8021 from 8:00 a.m. to 8:00 p.m. EST Monday through Friday. This number can be dialed in both the United States and Canada.

Vehicle requirements:

  • MUST have minimum no-load charge of 12.5V (failure to maintain voltage during update process can lead to ECM failure) (use an approved battery charger INC940 to maintain battery voltage).
  • VAS 5051: connected to vehicle and to 110V AC Power supply at all times during procedure.
  • VAS 5052: connected to vehicle with battery voltage requirements met.
  • Any appliances with high electromagnetic radiation (i.e. mobile phones) switched OFF.
  • When performing the update programming procedure, ALL DTCs for all systems are erased.
  • DTCs linked to Guided Fault Finding function tests will be lost. Therefore, always address stored DTCs for Customer concerns unrelated to the update programming procedure first.
NOTE: Non-observance of the following points may lead to ECM failure! VAS 5051 or VAS 5052 must always be connected to the approved power supply at the approved voltages. Under no circumstances should the power supply be interrupted or the diagnostic connector unplugged during the update programming procedure. Any appliances with high electromagnetic radiation (i.e. mobile phones) must be switched OFF.

Tip:

Before update programming, delete the fault memory in the ECM and TCM. Update programming is not possible when an EEPROM fault is active.

Reprogram ECM and TCM with CD - Part number W420607A5SWU.

NOTE: TCM reprogramming is only necessary if the feature for update programming is available.

Insert the programming CD into the VAS 5051 / 5052, and access the ECM.

Tip:

If the update programming button does not appear, the latest version has already been installed to the level below.

  • Programming starts by pressing the "Update Programming" button and following the on screen prompts.
    NOTE: Once update programming begins, on NO occasion should the Cancel button be selected.
  • Press the "Update Programming" button.
  • Once ECM update has been performed, access TCM and perform "Update Programming" if the VAS 5051 / 5052 shows the "Update Programming" feature.

    Tip:

    Once update programming is complete, it is recommended to use 1001- Compiling Services prompt to clear faults stored in various control modules.

  • Reset readiness code.
UPDATED ENGINE CONTROL MODULE

Model Year Vehicle ECM Index New Index Software Level
2007 Jetta/Rabbit 07K906032 Q - 9650
R - 9651
S - 9652
T - 9653
2007 New Beetle, New Beetle Convertible 07K906032 AA - 9654
AB - 9655
AC - 9656
AD - 9657
2006 Jetta 07K906032 AN - 9683
AP - 9684
AQ - 9685
AR - 9686
L AN 9683
M AP 9684
N AQ 9685
P AR 9686
2006 New Beetle, New Beetle Convertible 07K906032 No Index AS 9687
A AT 9688
B BA 9689
C BB 9690
AS - 9687
AT - 9688
BA - 9689
BB - 9690
UPDATED TRANSMISSION CONTROL MODULE

Model Year Vehicle TCM Index New Index Software Level
2006 Jetta 09G927750 AS or EL GJ 0833

WARRANTY

WARRANTY INFORMATION

To determine if this procedure is covered under Warranty, always refer to the Warranty Policies and Procedures Manual
Claim Type: Use applicable Claim Type(2)
Part Identifier: 2470
Damage Code: 2470 39 _ _ _(1) 1
Labor Operation: 24702599 = 50 TU
Diagnostic Time: No diagnostic time allowed
Claim Comment: Input "As per Technical Bulletin 2015972" in comment section of Warranty Claim.
(1) Code per warranty vendor code policy.
(2) Vehicle may be outside any Warranty in which case this Technical Bulletin is informational only.

REQUIRED PARTS AND TOOLS

REQUIRED PARTS

Part Description Part No: Quantity
CD W420607A5SWU 1

No Special Tools required.

ADDITIONAL INFORMATION

All part and service references provided in this Technical Bulletin are subject to change and/or removal.

Always check with your Parts Dept. and Repair Manuals for the latest information.

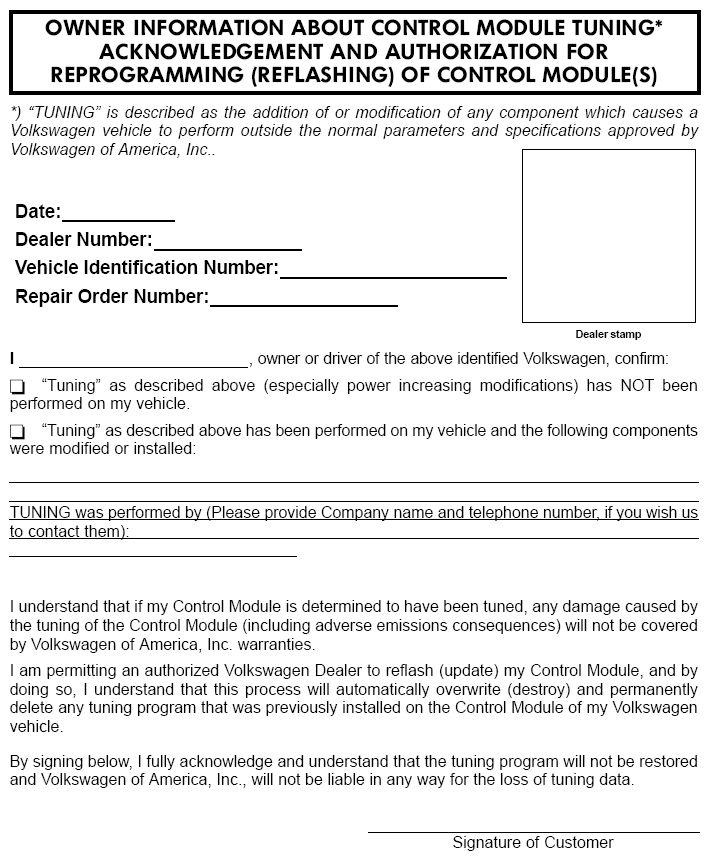

Fig 1: Control Module Tuning Form
G05607330
