Comfort Module Replacement Tip (TT 57-08-04)

Publication date: 2008-01-01
Reference number: TT 57-08-04

COMFORT MODULE REPLACEMENT TIP

TECH TIPS

Reference Number(s): TT 57-08-04

VOLKSWAGEN:	2006> GTI, 2007>Rabbit, EOS
GROUP:	57 - Front Doors, Central Locking

SERVICE INFORMATION

2006> GTI, 2007>Rabbit, EOS - Comfort Module Replacement Tip

When replacing the comfort module, be sure to run the correct coding test plan. The correct plan for NAR vehicles is the "Replacing/coding Comfort System Central Control Module - J393" as shown below. Do not run the "adaptation comfort system" test plan as it may cause internal changes to the module and could set fault code 00532 002 for low voltage that can not be erased.

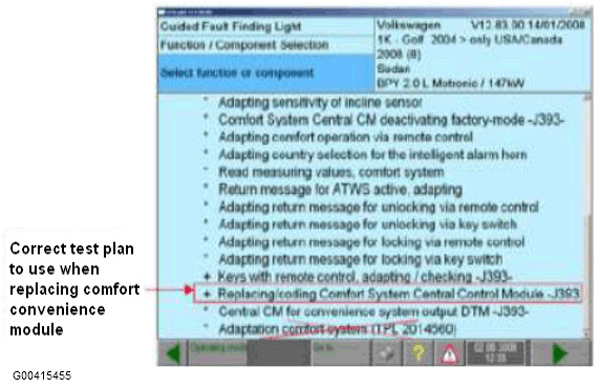

Fig 1: Correct Coding Test Plan
