High Pressure Sensor -G65-

Removing

-- Remove the engine noise insulation. Refer to Description and Operation .

-- Disconnect the connector from the high pressure sensor -1-.

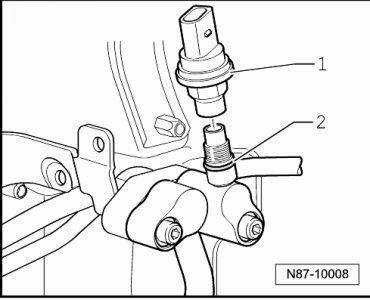

Fig 1: High Pressure Sensor G65 Remove/Install Components

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the high pressure sensor -1- (8 ± 1 Nm) from the refrigerant line connection.

NOTE:

Replace O-ring -2-.

High pressure sensor -1- may also be installed on a different side in the vicinity of the condenser, depending on the engine version.

Installing

Install in reverse order of removal.
