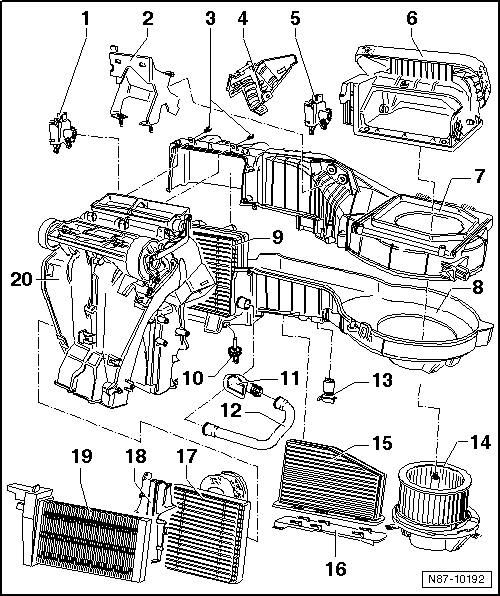

Climatic Heating And A/C Unit: Notes
- Temperature Regulator Door Motor -V68-
- Checking, use Vehicle Diagnosis, Testing and Information System VAS 5051B.
- Removing and installing, refer to TEMPERATURE REGULATOR DOOR MOTOR -V68- .
- Replacing, initiate Basic Setting function with Vehicle Diagnosis, Testing and Information System VAS 5051B. Refer to CLIMATRONIC, CHECKING AND ADJUSTING COMPONENTS .
- Bracket
- Screws
- Bolts must be unscrewed to separate air distributor and evaporator housing.
- Cover
- Recirculation Door Motor -V113-
- Checking, use Vehicle Diagnosis, Testing and Information System VAS 5051B.
- Removing and installing, refer to RECIRCULATION DOOR MOTOR -V113- .
- Replacing, initiate Basic Setting function with Vehicle Diagnosis, Testing and Information System VAS 5051B. Refer to CLIMATRONIC, CHECKING AND ADJUSTING COMPONENTS .
- Housing For Air Entry
- With recirculating air door.
- Evaporator Housing Upper Section
- Disassembling and assembling evaporator housing. Refer to EVAPORATOR HOUSING OVERVIEW .
- Evaporator Housing Lower Section
- Disassembling and assembling evaporator housing. Refer to EVAPORATOR HOUSING OVERVIEW .
- Evaporator
- Removing and installing, refer to EVAPORATOR .
- Evaporator Temperature Sensor -G308- or Evaporator Vent Temperature Sensor -G263-
- Checking, use Vehicle Diagnosis, Testing and Information System VAS 5051B.NOTE:
One or both of the component designations will appear, depending on software. The tasks are the same.
- Removing and installing, refer to EVAPORATOR TEMPERATURE SENSOR -G308- OR EVAPORATOR VENT TEMPERATURE SENSOR -G263- .
- Checking, use Vehicle Diagnosis, Testing and Information System VAS 5051B.
- Connection For Glove Compartment Cooling
- For disassembly, the glove compartment must be removed. Refer to Removal and Installation .
- Installation position of glove compartment cooling connection, refer to Installation position of glove compartment cooling connection .
- Coolant Hose For Glove Compartment Cooling
- For disassembly, the glove compartment must be removed. Refer to Removal and Installation .
- Fresh Air Blower Series Resistor With Fuse -N24-
- Removing and Installing, refer to FRESH AIR BLOWER SERIES RESISTOR WITH FUSE -N24- .
- Fresh Air Blower -V2-
- Removing and Installing, refer to FRESH AIR BLOWER -V2- .
- Dust and Pollen Filter
- With activated charcoal filter.
- Removing and Installing, refer to DUST AND POLLEN FILTER .
- Cover
- For dust and pollen filter.
- Heater Core
- Removing and installing, refer to HEATER CORE .
- Heater Core Trim
- Auxiliary Heater Heating Element -Z35-
- Only on vehicles with Diesel engine.
- Junction Box
