Radio Navigation System 2 With MULTIFUNCTION Display Overview, Golf Plus

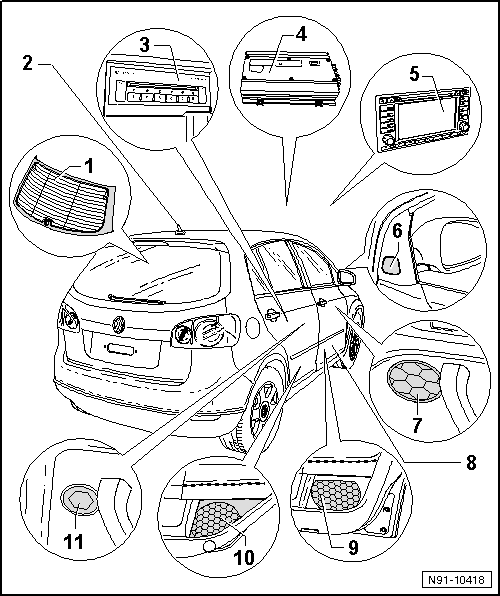

Fig 1: Radio Navigation System 2 With Multifunction Display Overview, Golf Plus

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Antenna
- Installed in rear windshield
- Additional information, refer to ANTENNA
Telephone/Navigation System (GPS)/Auxiliary Heater Antenna -R66-
- On rear of roof
- Additional information in, refer to ANTENNA
CD Changer -R41-
- 6 disc CD changer
- Installed under foldable center armrest
- Additional information, refer to CD CHANGER
Digital Sound System Control Module -J525-
- Installed under left front seat
- Additional information, refer to SOUND SYSTEM AMPLIFIER
Radio/Navigation Display Control Module -J503-
- Removing and Installing, refer to RADIO AND RADIO NAVIGATION SYSTEM, RABBIT SEDAN
- Overview of harness connectors, refer to RADIO NAVIGATION SYSTEM 2 WITH MULTIFUNCTION DISPLAY CONNECTOR OVERVIEW
Right Front Treble Speaker -R22- and Left Front Treble Speaker -R20-
- Installed in triangle window of left and right front doors
- Additional information, refer to SPEAKER SYSTEMS
Right Front Midrange Speaker -R104- and Left Front Midrange Speaker -R103-
- Installed in door trim of left and right front doors
- Additional information, refer to SPEAKER SYSTEMS
Antenna Selection Control Module -J515-
- Installed below front right seat
- Additional information, refer to ANTENNA
Right Front Bass Speaker -R23- and Left Front Bass Speaker -R21-
- Installed in door trim of left and right front doors
- Additional information, refer to SPEAKER SYSTEMS
Right Rear Bass Speaker -R17- and Left Rear Bass Speaker -R15-
- Installed in door trim of left and right rear doors
- Additional information, refer to SPEAKER SYSTEMS
Right Rear Treble Speaker -R16- and Left Rear Treble Speaker -R14-
- Installed in door trim of left and right rear doors
- Additional information, refer to SPEAKER SYSTEMS
