Instrument Cluster

NOTE:

Prior to replacing the instrument cluster, perform the procedure INSTRUMENT CLUSTER, REPLACING to check the data stored in the control module.

Removing

-- Turn off the ignition and all electric consumers and remove the key.

NOTE:

It is not necessary to remove the steering wheel.

-- Pull steering wheel all the way out and lock it in the lowest position.

-- Remove upper section of steering column trim. Refer to Storage Compartments, Covers and Trim in Removal and Installation .

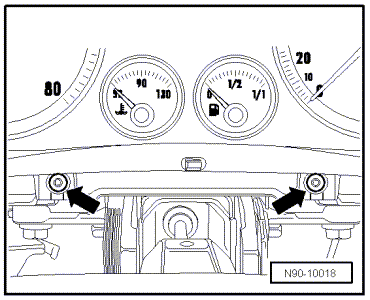

-- Remove mounting bolts -arrows- of instrument cluster.

Fig 1: Identifying Instrument Cluster Mounting Bolts

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

NOTE:

The fixed electrical connection to the instrument cluster is disconnected automatically when the cluster is pulled out of the instrument panel opening. Harness connector is installed permanently in vehicle and is disconnected automatically when pulling out instrument cluster.

-- Pull instrument cluster out of instrument panel.

Installing

Install in reverse order of removal.
