Comfort System Central Control Module -J393-

Removing

-- Turn off the ignition and all electric consumers and remove the key.

-- Remove the glove compartment. Refer to Storage Compartments, Covers and Trim in Removal and Installation .

-- Pull retaining tab -1- on the comfort system central control module bracket in the -direction of the arrow- and slide the comfort system central control module until recesses -2- and -3- line up.

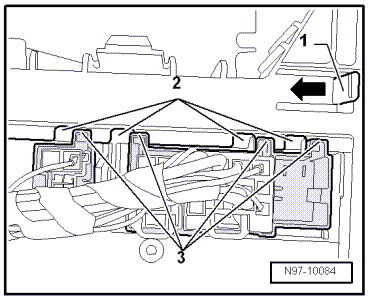

Fig 1: Identifying Direction To Pull And Slide Retaining Tab Of Comfort System Central Control Module Bracket J393

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

NOTE:

The connectors can only be disengaged and disconnected when the recesses -arrows- of the connectors and bracket line up exactly.

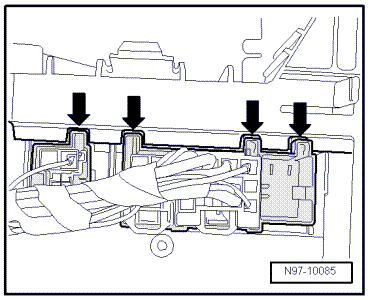

Fig 2: Identifying Recesses Lined Up

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Release and disconnect the connectors from the comfort system central control module.

NOTE:

The number of connectors depends on the vehicle equipment.

-- Remove the nuts -arrows-.

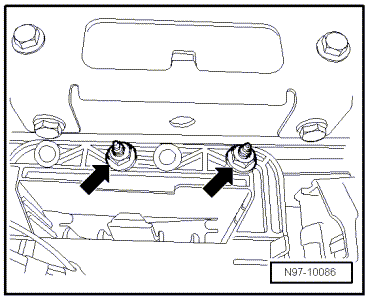

Fig 3: Identifying Comfort System Central Control Module Bracket Nuts

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove bracket with comfort system central control module.

-- Pull retaining tab -1- in -direction of arrow B- and slide comfort system central control module -2- out of bracket in -direction of arrow A-.

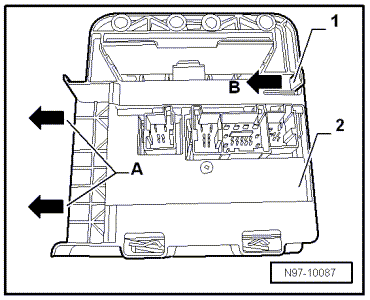

Fig 4: Identifying Directions To Pull And Slide Retaining Tab Module From Bracket

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Installing

Install in reverse order of removal. Note the following:

NOTE:

After installing a new Comfort System Central Control Module, it must be coded. Refer to COMFORT SYSTEM CENTRAL CONTROL MODULE -J393-, CODING .

Connectors can only be released and disconnected when the openings -arrows- on the connectors and on the bracket line up exactly.

Fig 5: Identifying Recesses Lined Up

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
