Rear Door Windows Assembly Overview

NOTE:

The description applies to the right side. The left side is similar

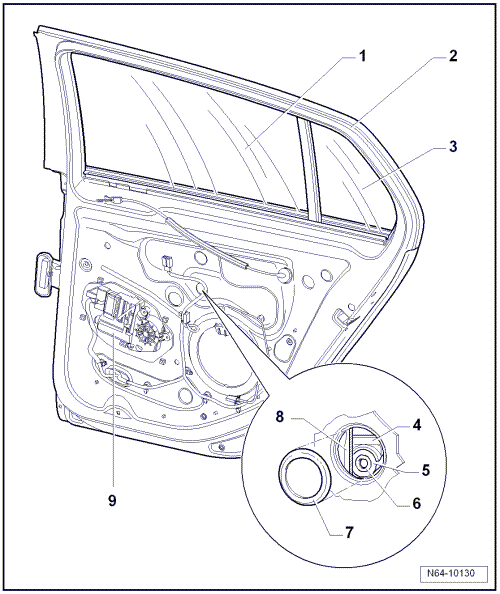

Fig 1: Rear Door Windows, Assembly Overview

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Door window
- Removing and Installing REAR DOOR WINDOW
Window guide
- Component of fixed door window.
- Removing and Installing FIXED REAR DOOR WINDOW WITH WINDOW GUIDE
Fixed door window
- Is component of window guide.
- Removing and Installing FIXED REAR DOOR WINDOW WITH WINDOW GUIDE
Window regulator guide
Spreader pin
- Always replace when performing assembly work at door window
Spreader plug
- Always replace when performing assembly work at door window
Cap
Window regulator
- Removing and Installing REAR DOOR WINDOW REGULATOR
Window regulator motor
- Removing and Installing REAR DOOR WINDOW REGULATOR MOTOR
