Rear Door Window Regulator Assembly Overview

NOTE:

The description applies to the right side. The left side is similar

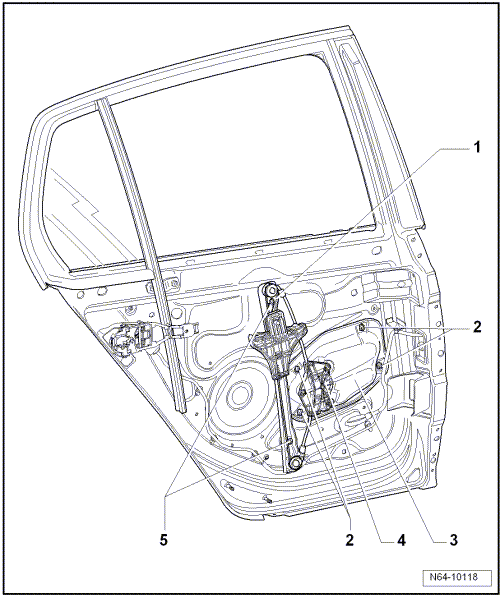

Fig 1: Window Regulator, Assembly Overview
GWWN64-10118Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Window regulator
  2. Bolt
    • Qty. 4
    • 8 Nm
  3. Mounting plate
  4. Drive motor
  5. Bolt
    • Qty. 2
    • 8 Nm
