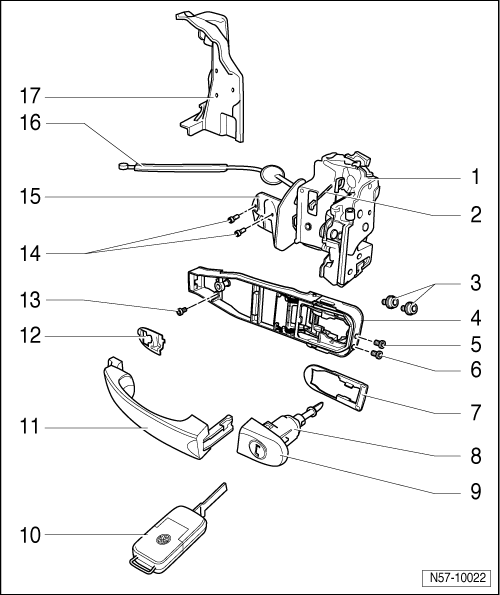

Door Handle And Door Lock Assembly Overview
NOTE:
The illustration shows the left side. It can also be applied to the right side.
- Door lock
- Removing and Installing DOOR LOCK
- Cable
- For disengaging lock of exterior door handle.
- Bolt
- For securing lock to inner door part
- 18 Nm
- Qty. 2
- Mounting bracket
- Removing and Installing BEARING BRACKET
- Bolt
- For lock cylinder.
- Retaining bolt
- Not available on all versions.
- This screw is installed for additional securing of mounting bracket.
- Backing
- Lock cylinder housing
- Only on driver's side.
- Only one housing is installed on front passenger's side.
- Removing and Installing HOUSING
- Cap
- For the lock cylinder housing.
- Is secured to lock cylinder housing with three tabs.
- Key
- Battery, Changing BATTERY FOR FOLDING REMOTE CONTROL KEY ASSEMBLY OVERVIEW
- Adapting new/additional keys to remote control and immobilizer REMOTE CONTROL KEYS, ADAPTING
- Door handle with backing plate
- Removing and Installing DOOR HANDLE
- Backing
- Is a component of door handle.
- Torx screw
- Socket wrench T 10072
- Expanding rivet
- Not installed on some models.
- Angle bracket
- Not installed on some models.
- Cable
- To lock release mechanism of door handle.
- Cover
- Does not belong to packaged contents of door lock
- Is secured to door lock with three tabs.
