Main Fuse Box

Main Fuse Box

Main fuse box is located at rear right of luggage compartment under tool kit and wagon jack formed insert.

Special tools, testers and auxiliary items required

• Torque Wrench (V.A.G 1331)

CAUTION!
• Observe safety precautions when working on battery isolation system. Refer to=> [ Battery Interrupt Igniter, Safety Precautions ] Service Precautions.

• Observe notes for disposal of battery isolator units. Refer to=> [ Battery Interrupt Igniter Disposal ] Battery Interrupt Igniter Disposal.

Removing

- Remove Battery Interrupt Igniter. Refer to => [ Battery Interrupt Igniter ] Service and Repair.

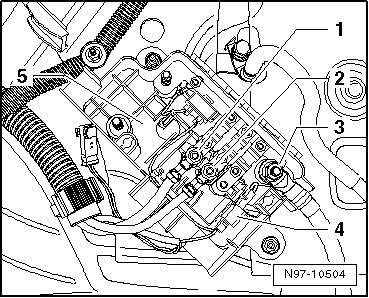

- Remove nuts - 1 -, - 2 - and - 3 - and remove wires from connector threads.





- Pull harness connector - 4 - out of its secured position in main fuse box.

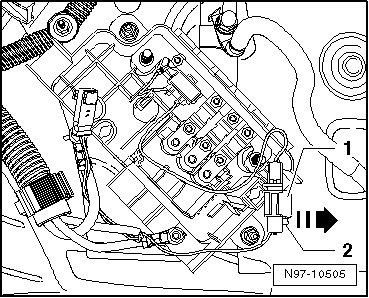

- Pull release lever - 2 - outward in direction of arrow and disconnect connector - 1 -.

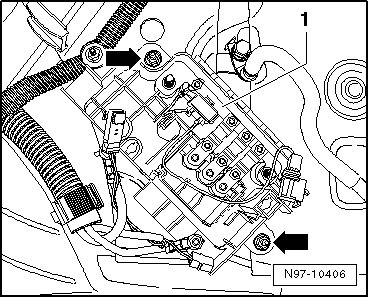

- Remove both nuts - arrows - and remove main fuse box - 1 - from vehicle.





Installing

Install in reverse order of removal, noting the following:

- Tighten all threaded connections to specified torque.
