Window Handle: Service and Repair

Door Trim Panels, Rabbit from MY 2004

Window Crank

Removal

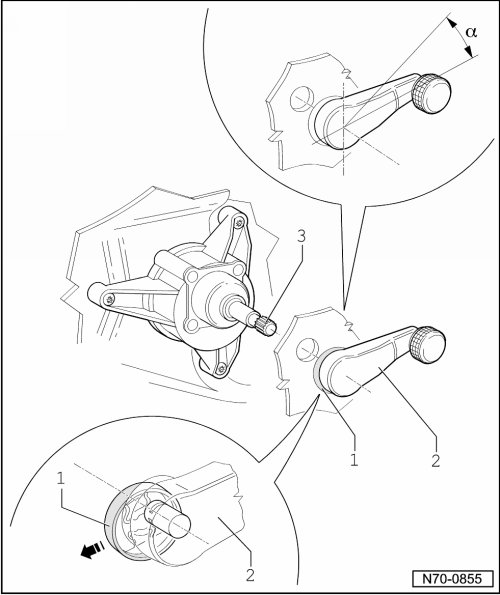

- Press circlip - 1 - forward in direction of travel - arrow - and remove window crank - 2 - from drive mechanism - 3 -.





Installation

- To install, perform the steps used for removal in reverse order.

• After installation, window crank on right side of vehicle must stand at "5:00" when window is closed.

• After installation, window crank on left side of vehicle must stand at "7:00" when window is closed.

• This corresponds to a 30 degrees - angleα - position.

• Deviation of window cranks to each other must be 6 degrees max.
