Fluid Pressure Sensor/Switch: Locations

Automatic Transmission Hydraulic Pressure Sensor 1 G193 and Automatic Transmission Hydraulic Pressure Sensor 2 G194 09G, 6 Speed A/T





This sensor is not installed in all transmissions.

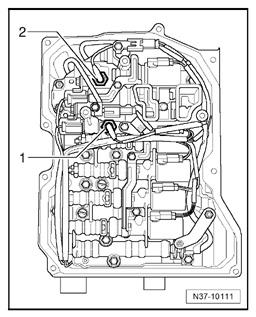

Location: For transmissions with these sensors, they are located in the valve body.
1 - Automatic Transmission Hydraulic Pressure Sensor 1 G193
2 - Automatic Transmission Hydraulic Pressure Sensor 2 G194
