Transmission to Engine Tightening Specifications

Transmission to Engine Tightening Specifications

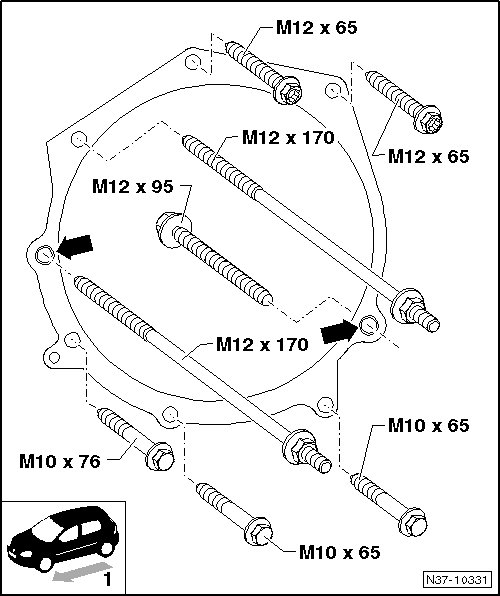

1 - Driving Direction

- Drive Plate to Converter, 60 Nm

• Quantity: 6, remove and install using socket SW15 (V/175).

- M12 - Bolts

• 80 Nm

• 65 Nm when using the insert tool 18 mm (T10179).

- M10 - Bolts, 40 Nm

• These bolts are located at the bottom in the flange.

Arrows - For Alignment Pins On Engine

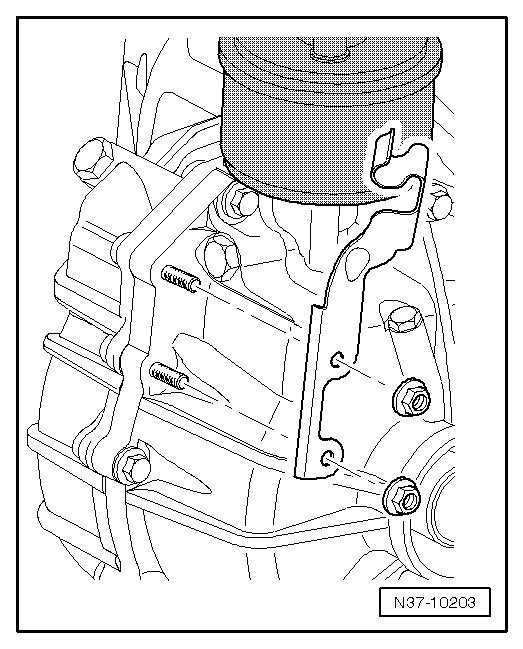

- Make sure that the bracket does not touch the transmission fluid cooler.

- Nuts - 8 Nm
