Headlamp Control Module: Locations
Control modules in front part of vehicle
Headlamp Range Control Module -J431-

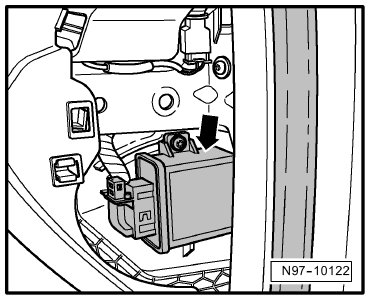

Component Location:
On glove compartment, right -Arrow-

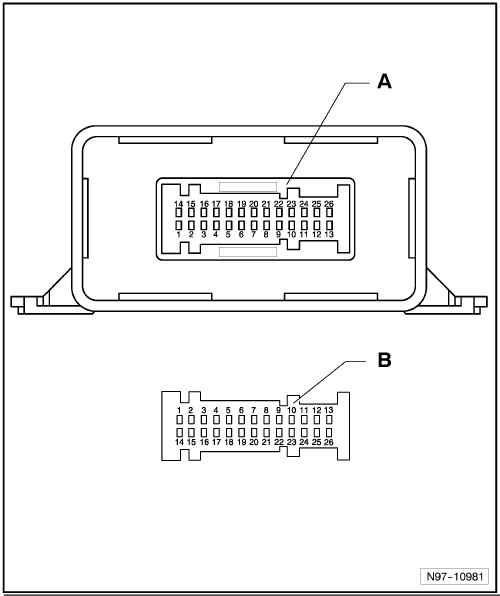

Pin Arrangements:
A - Headlamp Range Control Module -J431-
Connector:
B - 26-Pin Connector -T26b-, on wiring harness
