Driver's Door Control Module -J386-
Control modules in front part of vehicle
Driver's Door Control Module -J386-

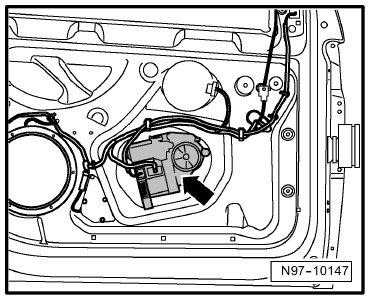

Component Location:
On front left door inner part -Arrow-

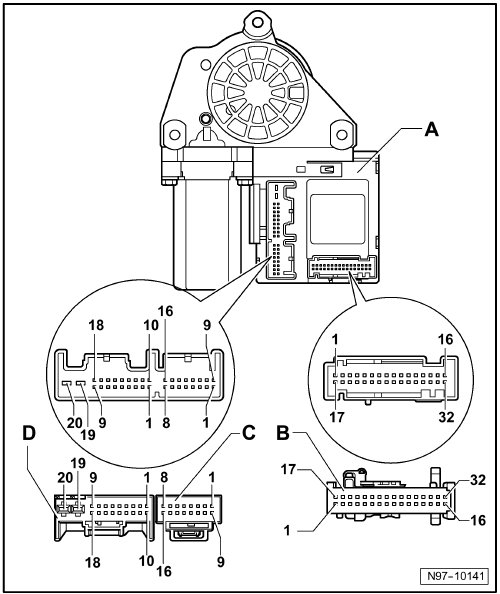

Pin Arrangements:
A - Driver's Door Control Module -J386-
Connector:
B - 32-Pin Connector -T32a-, on wiring harness
C - 16-Pin Connector -T16a-, on wiring harness
D - 20-Pin Connector -T20a-, on wiring harness
