Antenna Control Module: Service and Repair

Antennas

Antenna Selection Control Module

Removing

- Switch off ignition, switch off all electrical consumers, and remove ignition key.

- Slide right front seat into the rearmost position.

- Remove cover under seat in direction of - arrow -.

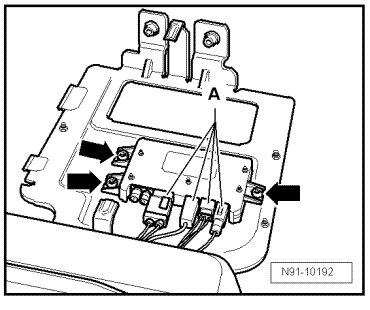

- Release and disconnect electrical connection - A -.





- Remove clips - arrows - and remove control module.





Installing

Install in reverse order of removal.
