Headlamp Control Module: Service and Repair

HID Headlamp Control Module

• Left High-intensity Gas Discharge Lamp Control Module (J343) and Right High-intensity Gas Discharge Lamp Control Module (J344) is not capable of On Board Diagnostic (OBD).

Removing

- Remove headlamp. Refer to=> [ Headlamps ] Headlamps.

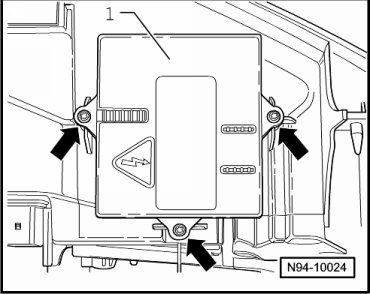

- Remove mounting bolts - arrows - of High-intensity Gas Discharge Lamp Control Module - 1 -.





• While removing High-intensity Gas Discharge Lamp Control Module , no harness connectors must be disconnected. Harness connector is installed permanently on headlamp and is automatically disconnected when removing High-intensity Gas Discharge Lamp Control Module.

- Remove High-intensity Gas Discharge Lamp Control Module - 1 - from headlamp.

Installing

CAUTION!
Make sure seal has proper seating when installing High-intensity Gas Discharge Lamp Control Module. It is destroyed by ingress of water into headlamp.

Install in reverse order of removal, noting the following:

- Check headlamp for function.

- Perform basic setting of headlamp
