High Pressure Sensor / Switch: Locations







Climatic / Climatronic Systems

High Pressure Sensor

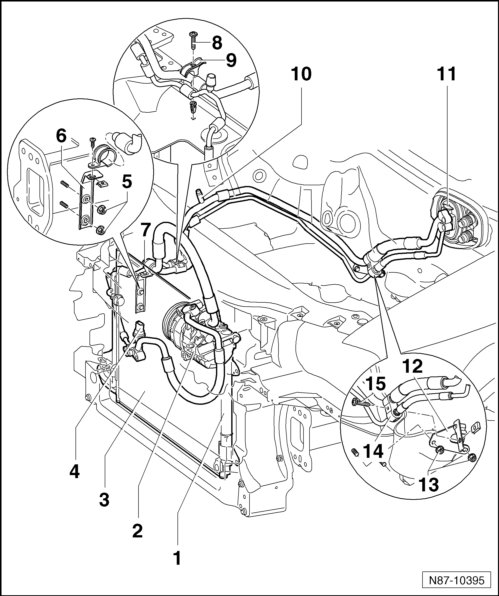

4 - High Pressure Sensor -G65-
• High Pressure Sensor -G65--1- may also be installed on a different side in the vicinity of the condenser, depending on the engine version
