Footwell Outlet Temperature Sensor

Climatic Door Motors and Temperature Sensors

Footwell Outlet Temperature Sensor

Removing

- Remove instrument panel.

- Remove Data Bus On Board Diagnostic Interface ( J533)

- Remove left footwell vent => [ Left Footwell Vent ] Vents.

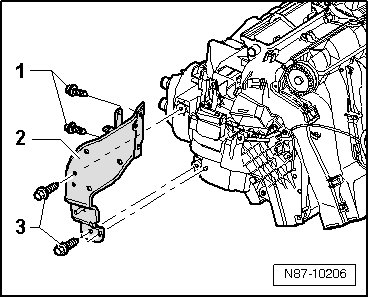

- Remove the bolts - 1 - and - 3 -(9 ± 1.3 Nm).

- Remove bracket - 2 -.





- Disconnect connector at Footwell Outlet Temperature Sensor (G192) - 1 -.

- Rotate Footwell Outlet Temperature Sensor (G192 ) 90° and remove from housing.

Installing

Install in reverse order of removal.
