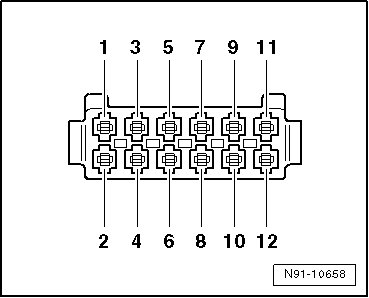

iPod Mount Connector, Overview

iPod Mount Connector, Overview





1. Data exchange between iPOD and radio

2. Data clock (internal test protocol for monitoring data flow)

3. Voltage supply, terminal 31, negative

4. Radio control data (analog CD changer)

5. Not used

6. Voltage supply, positive

7. Audio signal output, right, positive

8. Control wire from radio, positive (analog CD changer)

9. Audio signal output, negative

10. Audio signal output, left, positive

11. Not used

12. Not used
