Traction Control Switch: Service and Repair

Anti-Slip Regulation/Electronic Stabilization Program Button

Removing

- Turn off the ignition and all electrical consumers.

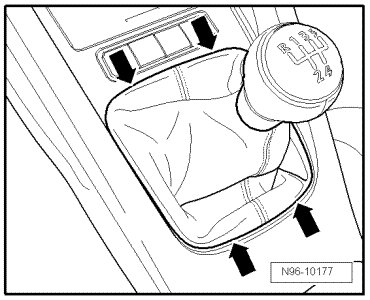

- Carefully pry off shift boot from center console - arrows -.

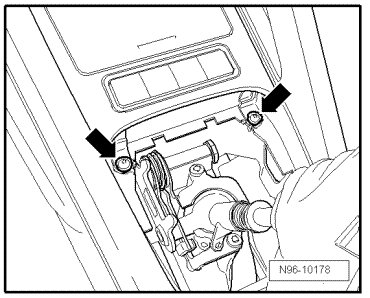

- Remove screws - arrows -.





- Remove installation frame with ashtray from center console.

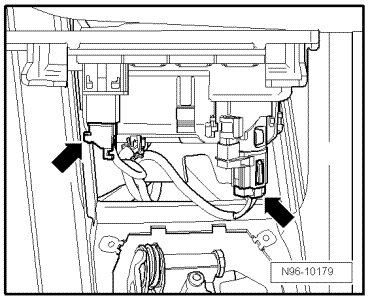

- Disconnect connectors - arrows -.

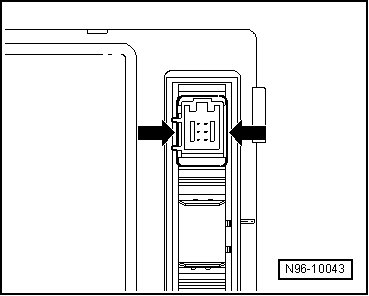

- Disengage retaining tabs - arrows - and remove switch from installation frame.





Installing

Install in reverse order of removal.
