Subframe Mounting Bracket

Subframe Mounting Bracket

CAUTION!
Observe safety precautions! Refer to

• In the example, replacement of retaining bracket for subframe is described for left front retaining bracket on this vehicle. The work procedure is performed in a similar manner for the other 3 retaining brackets.

Removing

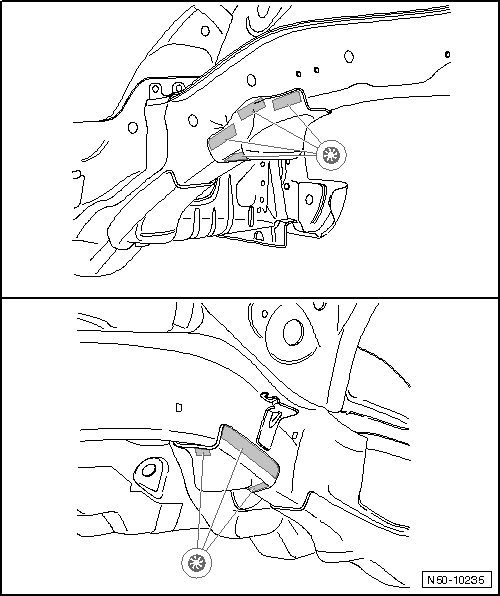

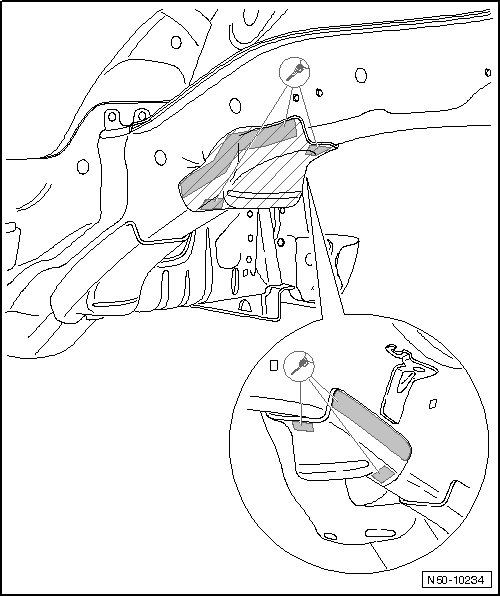

- Separate the original connection.

- Remove residual material.





Installing

Preparing New Parts

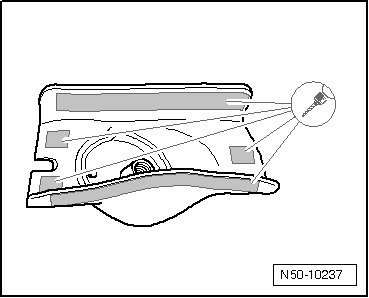

- Drill holes for gas-shielded arc plug weld seam.





Welding

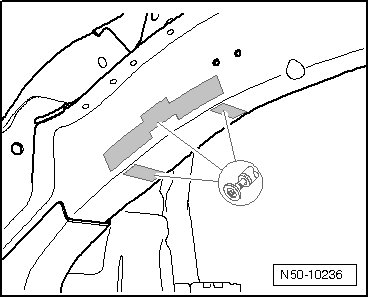

- Fit new part to vehicle standing on alignment bracket set and secure.





- Weld in new part; gas-shielded arc plug weld seam.
