Firewall: Service and Repair

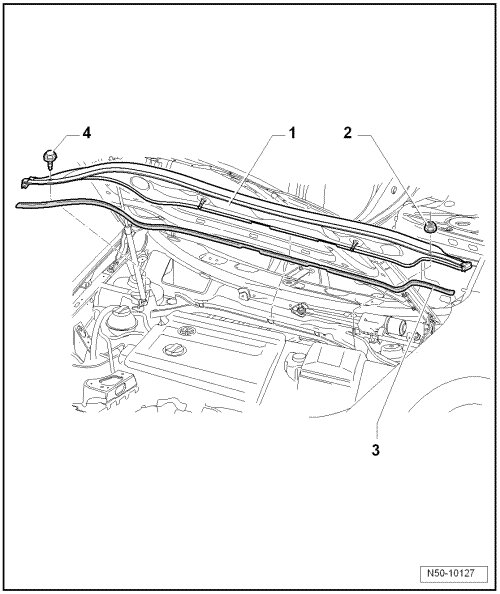

Plenum Chamber Bulkhead Assembly Overview

Special tools, testers and auxiliary items required

• Torque wrench 2 to 10 Nm (V.A.G 1783)





1 Plenum chamber bulkhead

2 Hex nut

• 8 Nm

3 Seal for plenum chamber bulkhead

• Ensure seal is seated correctly when installing bulkhead.

4 Bolt

• 8 Nm
