Radio Navigation System, Services

Radio Navigation System, Services

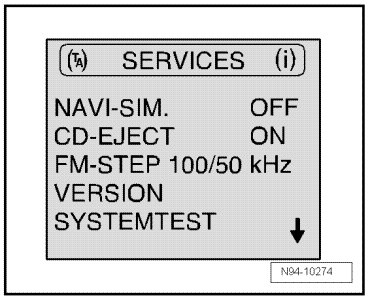

SERVICES Main Menu Page 1





• NAVI-SIM = activate demo mode (ON/OFF)

• CD-EJECT = lock CD eject (ON/OFF)

• FM-STEP = adjusting tuning grid (100/50kHz)

• VERSION = display of individual software versions

• SYSTEM TEST = sensor test and internal tests

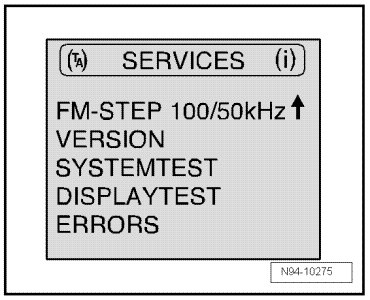

SERVICES Main Menu Page 2





• DISPLAY TEST = Test of LCD display (by selecting this menu item and by repeatedly pressing right rotary/push knob, various display areas are " optically highlighted" and be checked for malfunction and completeness)

• ERRORS = read and erase the DTC memory
