Screen Separator Wall

Screen Separator Wall

=> [ Screen Separator Wall ]

=> [ Screen Separator Wall Mounting Components ]

Screen Separator Wall

Removal

- Fold the bench seat backrest forward and open the right rear door.

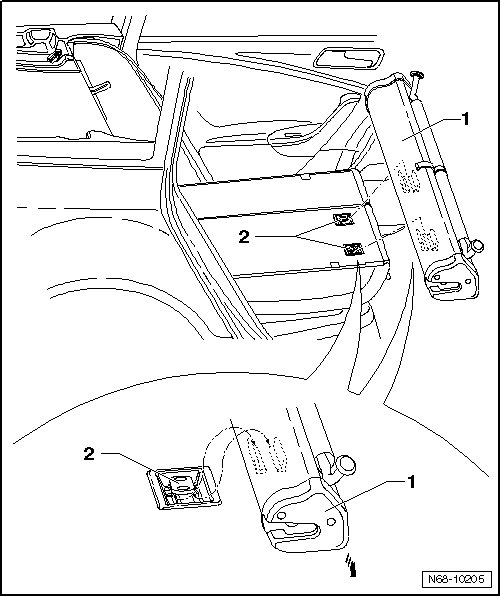

- Pull screen separator wall - 1 - outward - arrow - out of mounts - 2 - in right rear backrest.





Installation

- To install, perform the steps used for removal in reverse order.

Screen Separator Wall Mounting Components

Removal

- Remove screen separator wall. Refer to => [ Screen Separator Wall ]

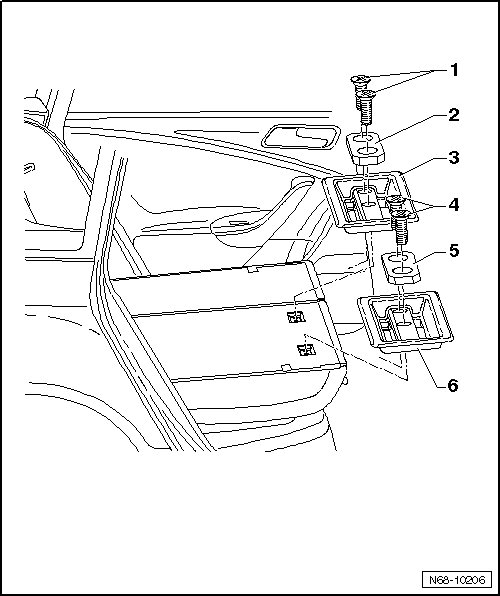

- Remove the two bolts - 1 - (8 Nm).

- Remove insert - 2 - and mounting component - 3 - from right backrest.

- Remove the two bolts - 4 - (8 Nm).

- Remove insert - 5 - and mounting component - 6 - from right backrest.





Installation

- To install, perform the steps used for removal in reverse order.
