Rear View Camera System Control Module -J772-







Control modules in luggage compartment

Rear View Camera System Control Module -J772-

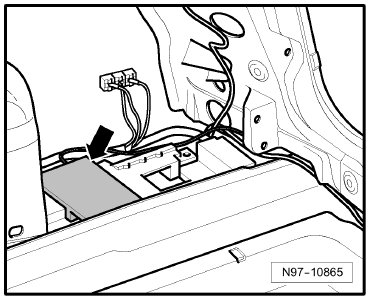

Component Location:


Behind the right luggage compartment side trim -Arrow-
