Control Modules in Luggage Compartment

Control modules in luggage compartment

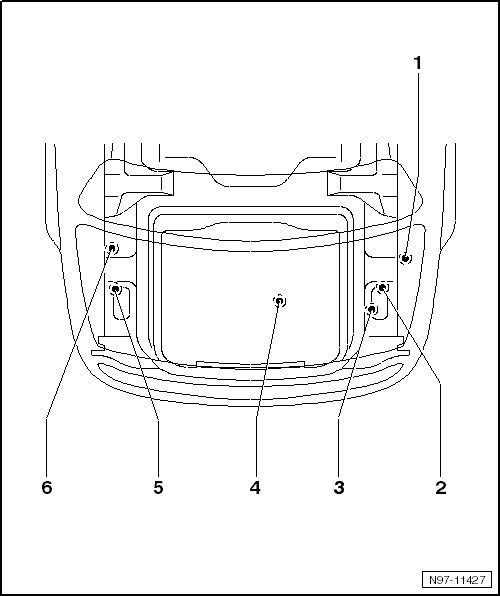

Overview of Control Modules







1 - Rear View Camera System Control Module -J772-
• Component Location => [ Component Location: ] Rear View Camera System Control Module -J772-

2 - TV Tuner -R78-
• Component Location => [ Component Location: ] TV Tuner -R78-

3 - Parking Aid Control Module -J446-
• Component Location => [ Component Location: ] Locations
• Pin Arrangements => [ Pin Arrangements: ] Locations
• Connector sedan => [ ] Locations
• Connector wagon => [ ] Locations

4 - Recuing Agent Heater Control Module -J891-

5 - Towing Recognition Control Module -J345-
• Component Location => [ Component Location: ] Locations
• Pin Arrangements => [ Pin Arrangements: ] Locations
• Connector => [ ] Locations

6 - Multimedia Control Module -J650-
• Component Location => [ Component Location: ] Multimedia Control Module -J650-
