Map Light Bulb: Service and Repair

Roof Trim Lamps and Switches

Rear Interior and Reading Light Bulbs

Removing:

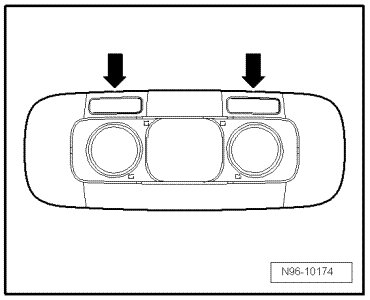

- Disengage retainers - arrows - and remove panel with diffusion lens from interior and reading lights.

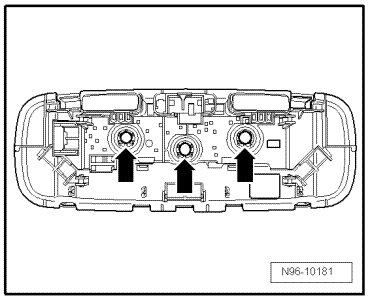

- Carefully remove bulb from socket - arrows -.





- Replace the glass base bulb (12V, 5 W).

Installing:

Install in reverse order of removal.
