Solar Panel Trim

Sunroof with Solar Panel, Webasto

Solar Panel Trim

- Remove the sunroof. Refer to => [ Sunroof Solar Panel ]. Sunroof Solar Panel

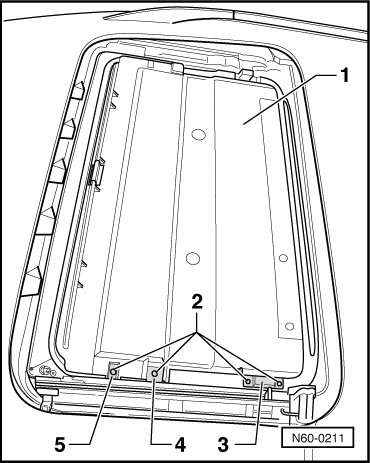

- Remove the bolts - 2 -.





- Remove guide - 3 - for water channel and angle bracket - 4 -.

- Push back roof trim slightly - 1 - and remove slider - 5 - from guide.

- Pry out roof trim - 1 - upward.
