Solar Panel Assembly Unit Electrical Contact

Sunroof with Solar Panel, Webasto

Solar Panel Electrical Contact

- Sunroof solar panel, removing, refer to => [ Sunroof Solar Panel ] Sunroof Solar Panel





- Place solar panel on suitable surface, top face down to prevent damage.

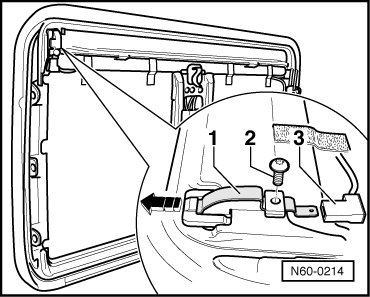

- Remove the screw - 2 - and pull the contact - 1 - out of the guide.

- Disconnect the connector - 3 -.

Tightening specification for screw - 2 -: 2 Nm.
