Refrigerant Pressure Sensor / Switch: Service and Repair

High Pressure Sensor

Removing

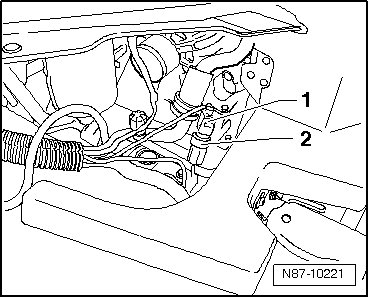

• For the purpose of a better illustration, the right headlamp is removed.

- Disconnect harness connector from high pressure sensor - 1 -.

- Remove the high pressure sensor - 2 - from the refrigerant line connection.

• Replace the o-ring

• High Pressure Sensor (G65) - 2 - may also be installed on a different side in the vicinity of the condenser, depending on the engine version.
