High Pressure Sensor / Switch: Locations

- Component Locations: Climate / Climatronic Systems

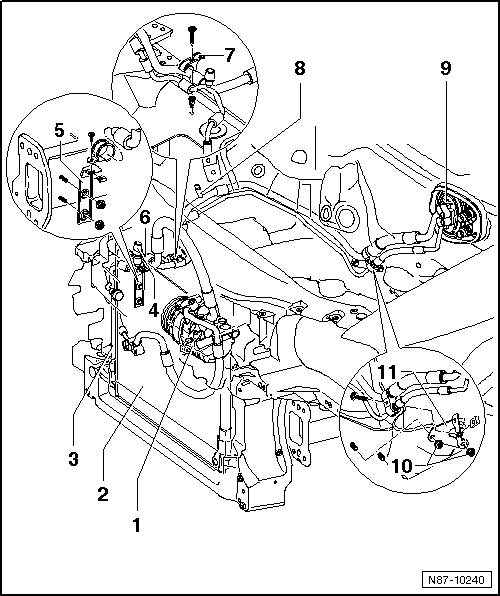

High Pressure Sensor







1 - A/C Compressor

2 - Condenser

4 - High Pressure Sensor -G65-
• High Pressure Sensor may also be installed on a different side in the vicinity of the condenser, depending on the engine version
