Communications Control Module






Control modules in interior

Operating Electronics and Telephone Control Module -J412- / Operating Electronics and Telephone Control Module -J738-









Component Location:


Below front right seat -Arrow A-

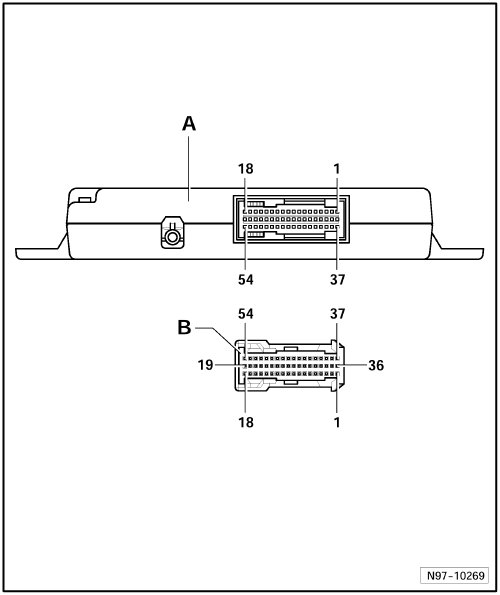

Pin Arrangements:







A - Operating Electronics and Telephone Control Module -J412-
Connector:

B - 54-Pin Connector -T54-
