Control Module and Hydraulic Unit Assembly Overview

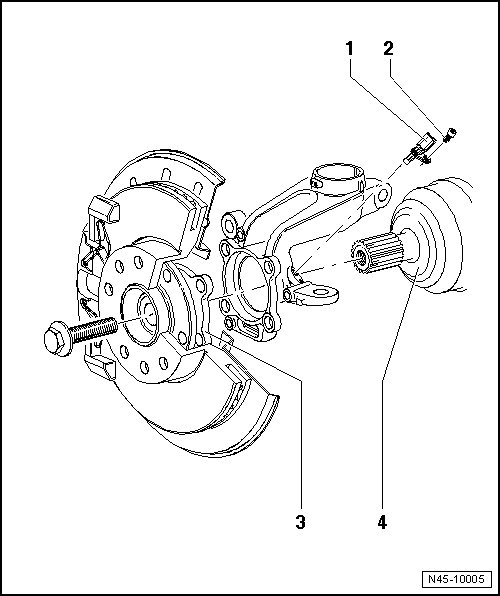

Front Axle ABS Components Overview





1 Wheel Speed Sensor

• Before inserting sensor, clean inner surface of bore hole and coat with hot bolt paste G 052 112 A3

• Removing and installing, refer => [ Wheel Speed Sensor, Front Axle ] Wheel Speed Sensor, Front Axle

2 Hex Socket Bolt

• 8 Nm

3 Wheel Hub with Wheel Bearing

• The ABS sensor ring is installed in the wheel bearing

4 Drive Axle
