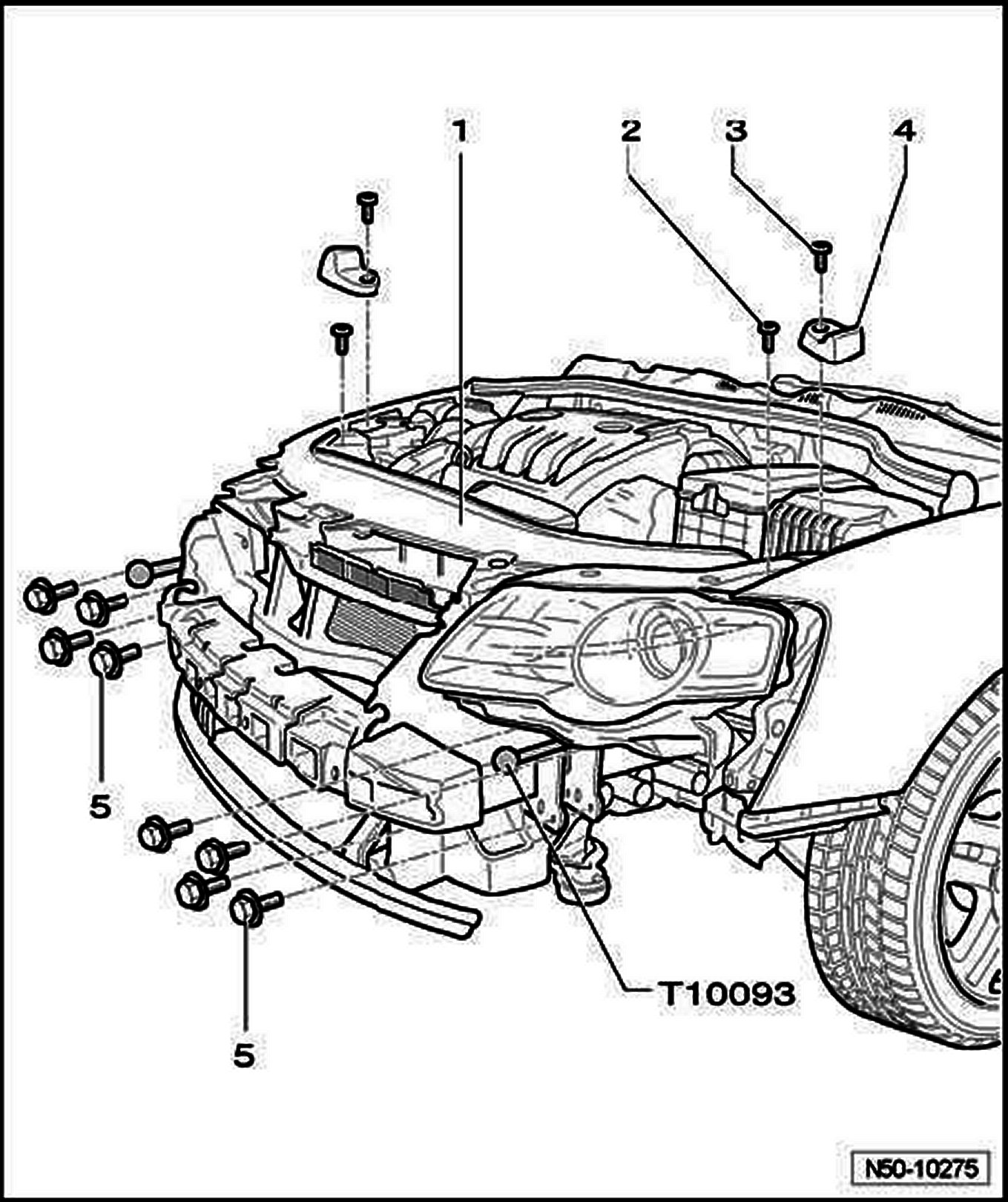

Lock Carrier Service Position Assembly Overview

Lock Carrier Service Position Assembly Overview







1. Lock carrier with attachments
Removing and installing, refer to
Service position, refer to Setting Lock Carrier Service Position Setting Lock Carrier Service Position

2. Bolt
Left and right
Tightening torque: 8 Nm

3. Bolt
Left and right
Tightening torque: 12 Nm

4. Rubber Stop
Left and right
Secured with bolt -3-.

5. Bolt
4 per side
Tightening torque: 60 Nm
