Connecting Rod, Engine

Connecting Rod Bolts
Replace bolts
First pass 30 Nm
Final pass Tighten 90° (1/4 additional turn)

Bearing Shells
Axial play
New 0.10 to 0.35 mm
Wear limit 0.4 mm
Radial clearance
New 0.02 to 0.06 mm
Wear limit 0.09 mm

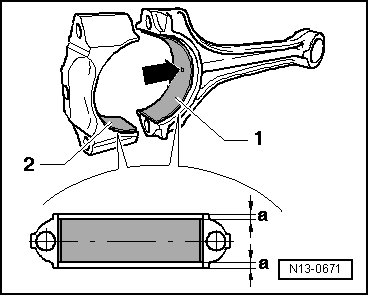

Installed Location





Dimension - a - must be the same at left and right.
