Main Relay (Computer/Fuel System): Locations

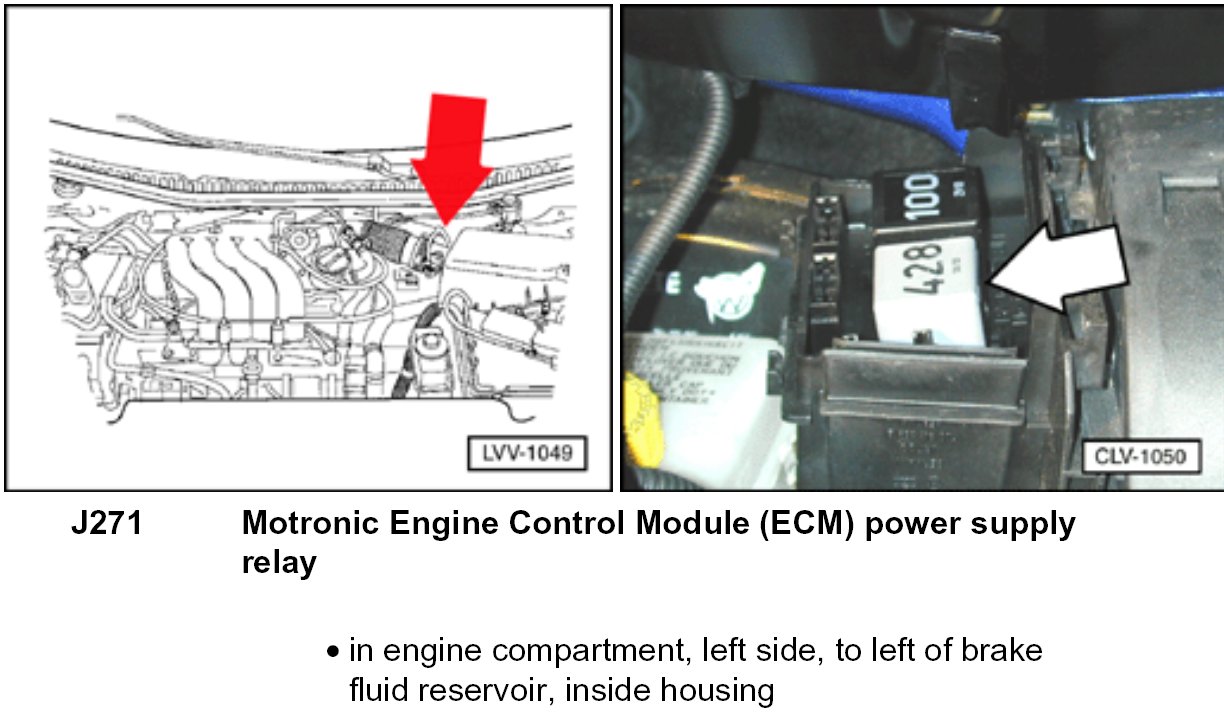

Motronic Engine Control Module (ECM) Power Supply Relay J271:

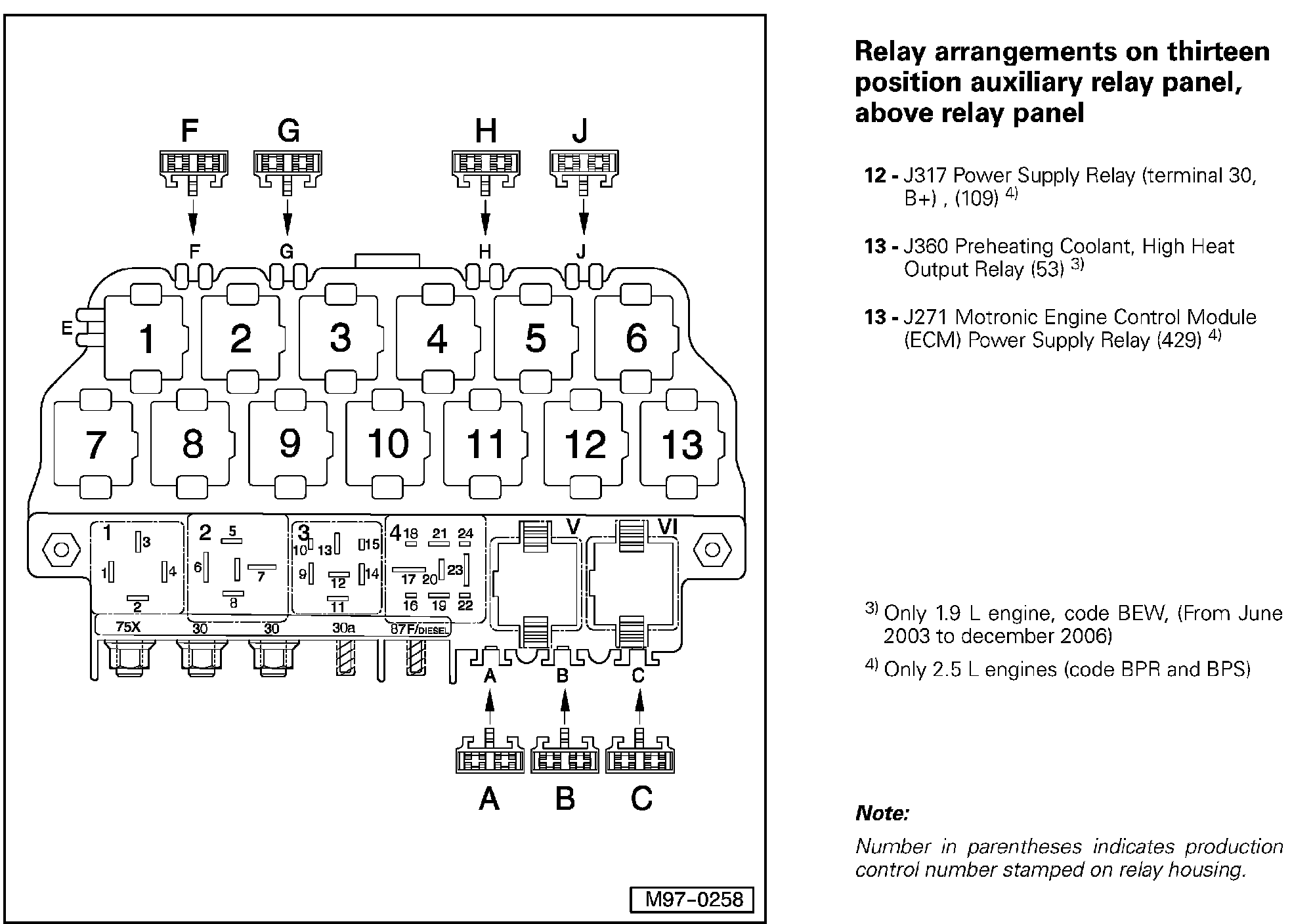

Relay Arrangements On The Thirteen Position Auxiliary Relay Panel, Above Relay Panel, 12-13:
