Heating and Ventilation Controls, Assembly

Heating And Ventilation Controls, Assembly

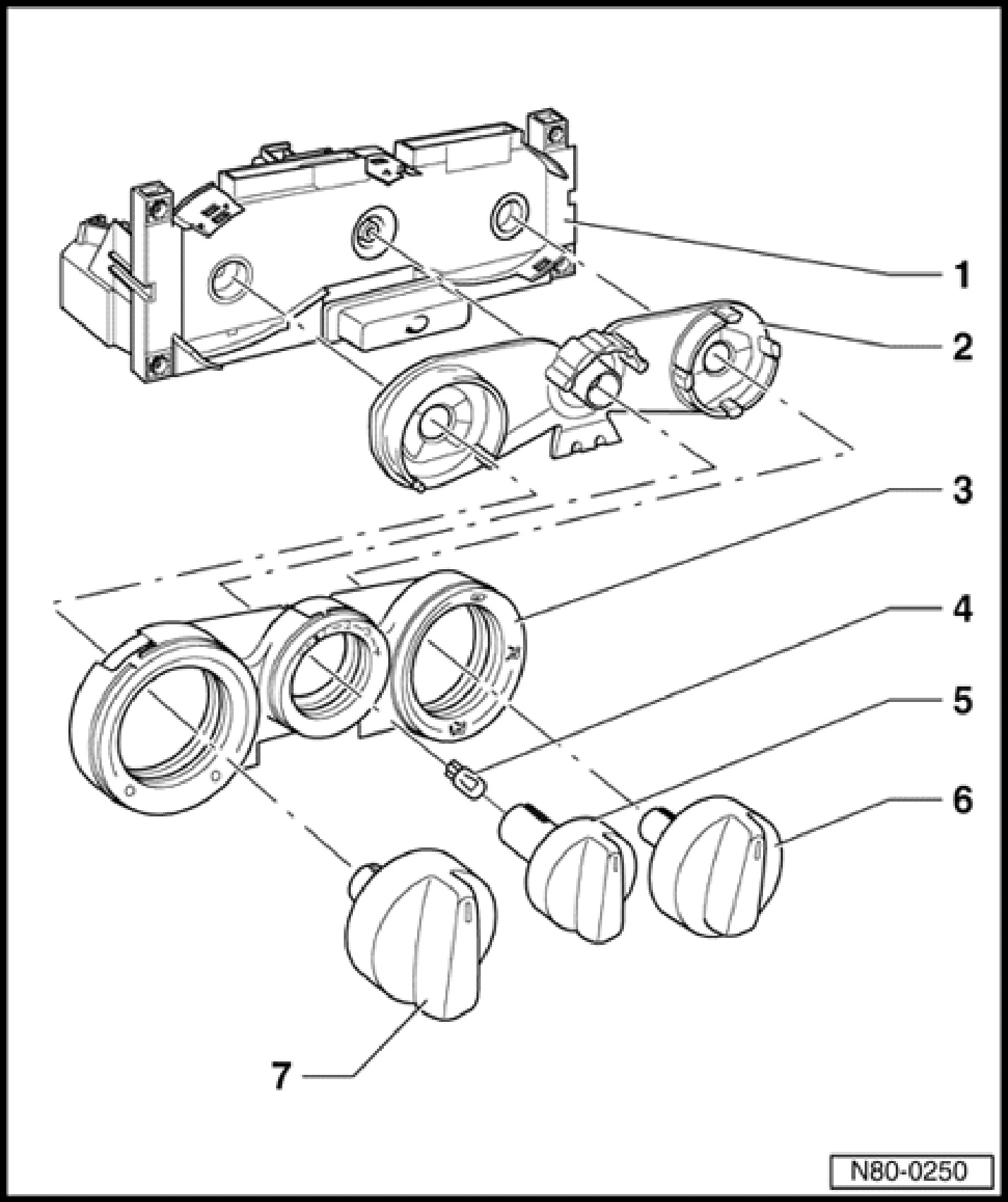

1 - Heating and ventilation controls
- With Fresh Air Blower Switch E9
- With Fresh Air Blower/Recirculated Air Switch E184
2 - Illumination filter
3 - Trim panel
4 - Fresh Air Control Illumination L16
- 12V, 1.2W
5 - Rotary control
- For blower speed
- To remove: Use pliers with suitable plastic or rubber protection on jaws
6 - Rotary control
- For air distribution
- To remove: Use pliers with suitable plastic or rubber protection on jaws
7 - Rotary control
- For interior temperature
- To remove: Use pliers with suitable plastic or rubber protection on jaws
