Right Engine Mount Bracket

Right Engine Mount Bracket

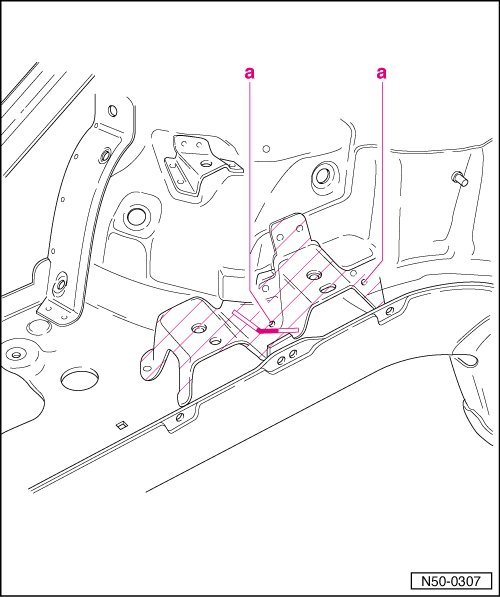

Cutting Location

- Separate engine mount bracket.

- Separate original joint.

- Remove front section.

- Drill out welds - a -, 7 mm dia. (0.275 in.).

- Remove excess material

Replacement Part

• Engine mount bracket

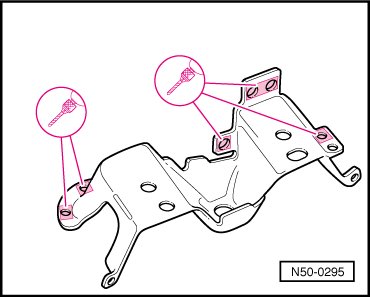

Preparing new part

- Drill 7 mm dia. (0.275 in.) holes for SG plug weld seam.

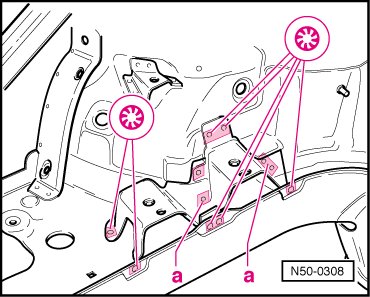

Welding In

- Position new part using straightening bracket.

- Weld mount bracket in place, SG plug weld seam.





- Weld in weld points - a - from outside, SG plug weld seam.
