Procedures

Generator B+ and D+ Connections, From 06.99

CAUTION:
If the B+ or D+ terminal nut is not torqued as specified, the following may result:
- Battery will not be completely charged
- Vehicle electrical system malfunctions
- Danger of sparking
- Damage to electronic components and control modules due to voltage spikes

Special tools, testers and auxiliary items required
- Torque wrench (5 - 50 Nm) VAG 1331 or equivalent.

NOTE: Threaded connection for B+ terminal at generator is labeled "B1+".

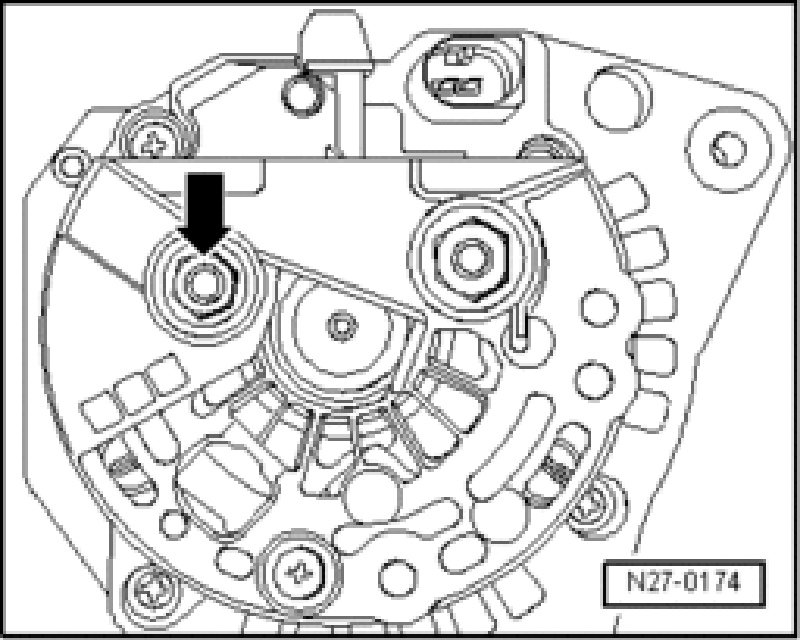

- Tightening specification for B+ terminal nut - arrow - : 15 Nm ± 1 Nm.
